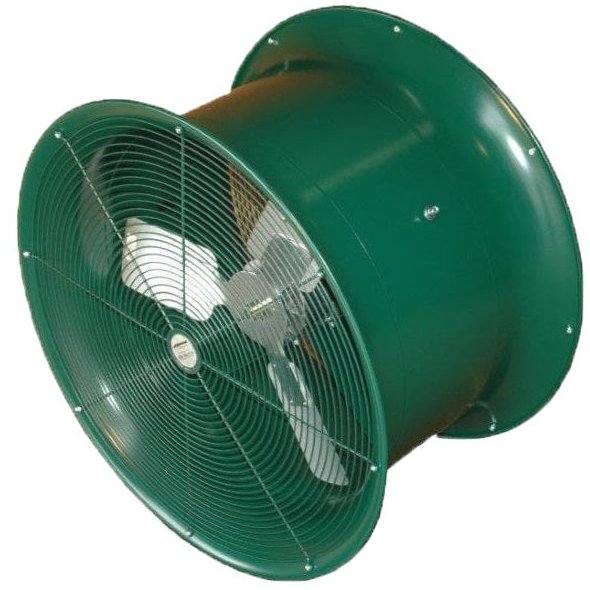

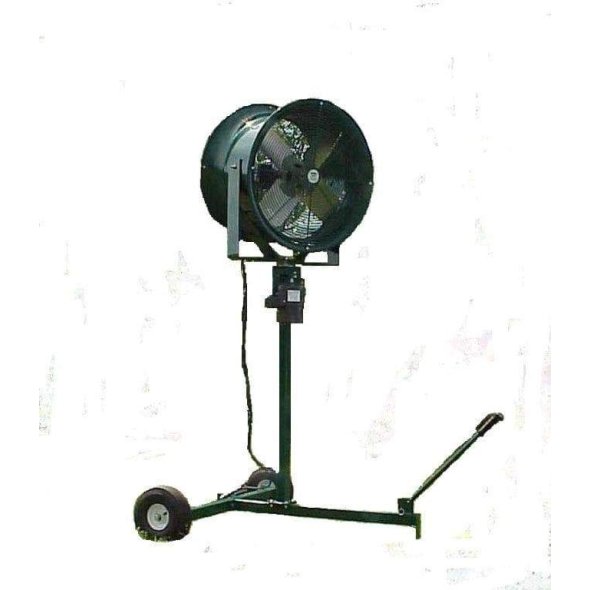

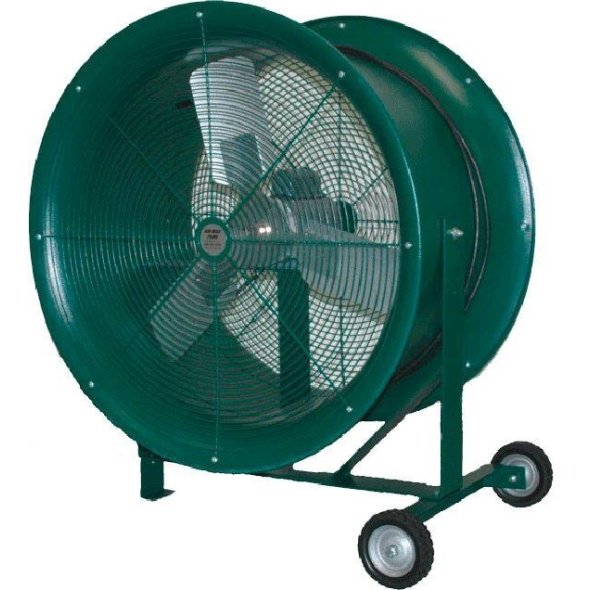

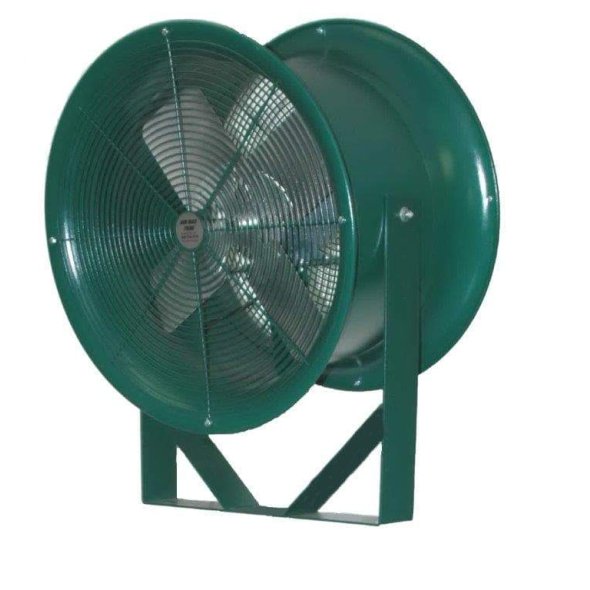

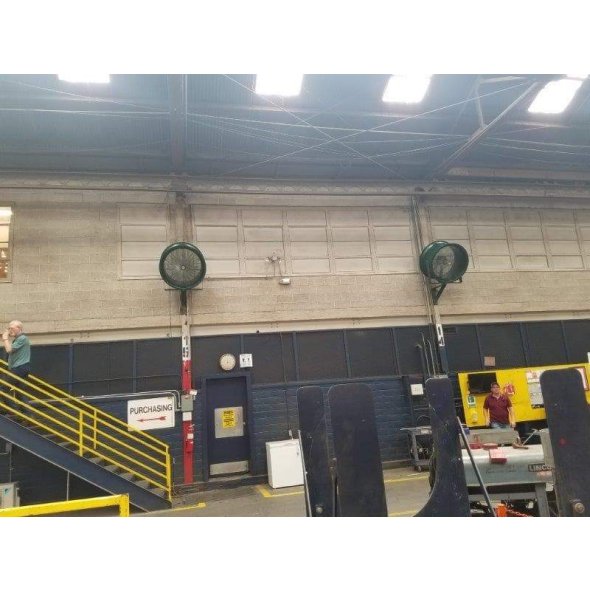

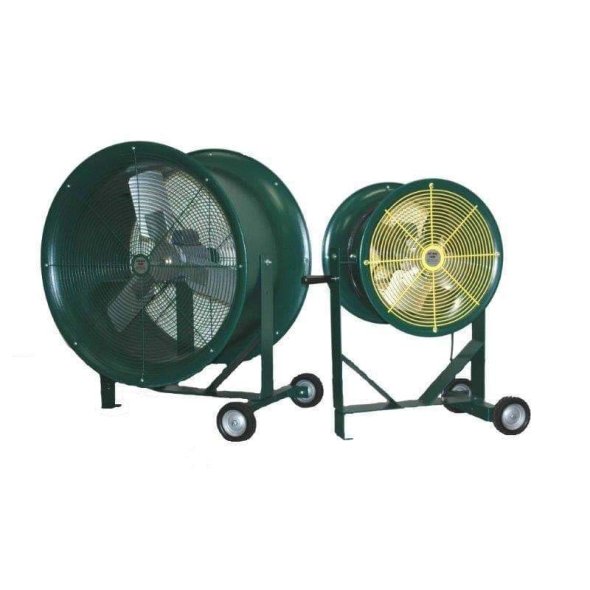

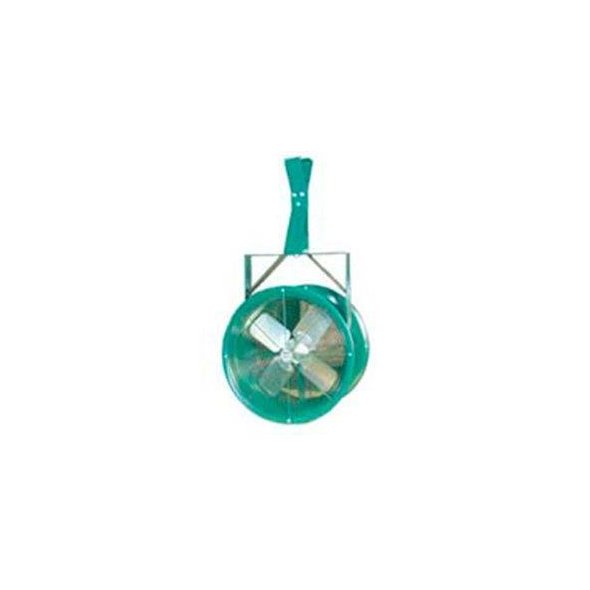

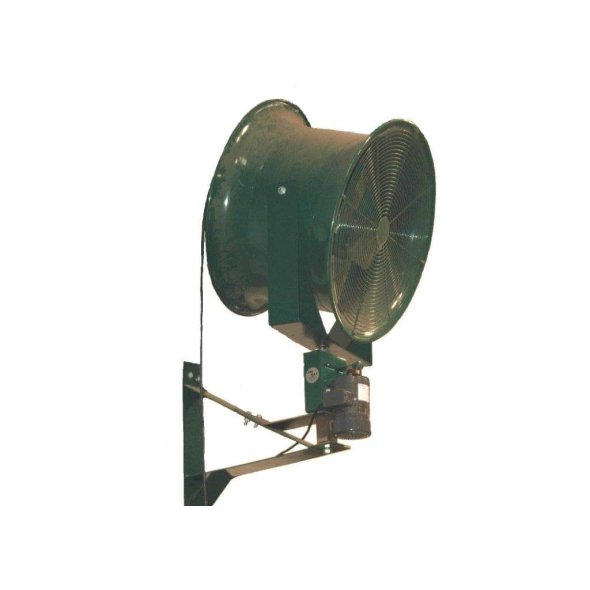

AirMax High Velocity Blower Fan 30 inch 12750 CFM (choose mount) AM-301
Highly Recommended Items:
| Quantity | Unit Price | You Save |
|---|---|---|
| 6-9 | 3% | |
| 10+ | 5% |
- LOW PRICE GUARANTEE
-
AUTHORIZED DEALER
-
EXPERT ADVICE
- ss36s||ss36s6
-
MADE IN USA
FREE SHIPPING*
AUTHORIZED DEALER
EXPERT ADVICE
MADE IN USA
FEATURES
The motor and blade are mounted in a 16 galvanized steel venturi/housing that is 22 inches in diameter at the widest point.
Guards are 3/8 inch spaced concentric steel wire guards that meet OSHA requirements are standard
Motors are explosion proof
All fan products are powder coated
All hardware is zinc coated grade 5 or better and nuts are nylon lock nuts
862 FPM at 20 ft. and 546 FPM at 50 ft.
High-grade zinc-plated hardware and durable powder coat finish for all mounting options
- Model No.:
- AM -301
- Voltage:
- 115 / 230
- Warehouse:
- South Carolina
- Made In U.S.A.:
- Yes
- Type:
- High Velocity Fans
- Amps:
- 9.2 / 4.6
- Blade Material:
- Aluminum
- Blade Size (Inches):
- 30
- CFM High:
- 12750
- Construction:
- Steel
- Decibels (dBA):
- 62 @ 20'
60 @ 50'
- Hertz:
- 60
- Drive Type:
- Direct
- Horsepower:
- 1
- Limited Warranty:
- 2 Year Limited
- Motor Type:
- Totally Enclosed
- RPM High:
- 1725
- Phase:
- 1
- Speed(s):
- 1
- Weight lbs.:
- 95
-
Notice: Manufacturer's products features and specifications are subject to change without notice.
-
California Residents:
WARNING- This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
QUESTIONS & ANSWERS
Ask a Question-
Can be install this fans in any position?
Yes, this fan can be mounted in any position.
-
This Air Max fan is specified at 62 dBA noise level at five feet. Is this a misprint? Should it be 50 feet? A similar fan; Patterson H30C is 82.2 dBA at 20 feet; which is much much louder than the 62 dBA at 5 feet. Please advise; since this fan may be too noisy for my application. Thank You.
Thank you for your question. The AM30 noise ratings are as follows:
62 dB @ 20’
60 dB @ 50’
-
What would the mph be at about 100 feet?
Thank you for your question. The manufacturer does not rate these units for MPH, but below is a throw chart from another manufacturer that should have similar performance. The air speed is measured in feet per minute, so at about 100 feet, you are looking at about 300-400 FPM.
