Specs for Typhoon Slant Wall Exhaust Fan 50 inch 21700 CFM Belt Drive VNS50CSCA
Item #: VNS50CSCA
8.6 / 4.3
50"
Cast Aluminum
21700
USA
Belt
841459
60
1
Yes
1 Phase
60" x 60" x 48"
316 lbs
1 Speed
20500 ft²
120 / 240
16.8
Wisconsin, USA
Yes

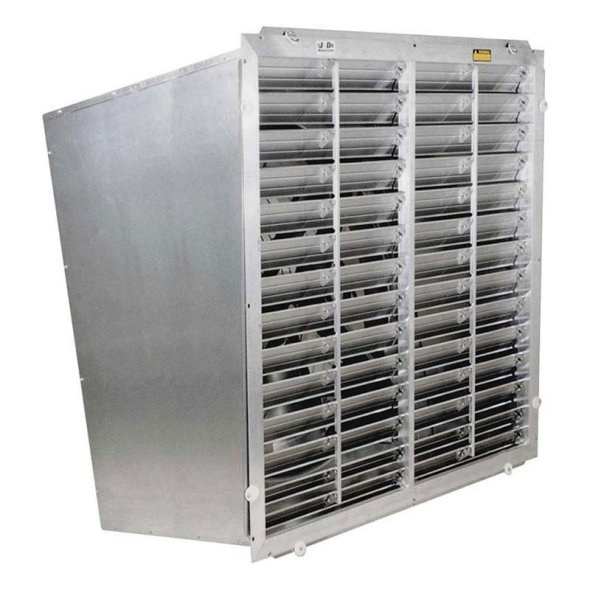

Typhoon Slant Wall Exhaust Fan 50 inch 21700 CFM Belt Drive VNS50CSCA
The Typhoon slant wall exhaust fan from J&D Manufacturing has a heavy gauge galvanized housing and X-frame motor mount to provide a solid structure. Typhoon fans include an aluminum shutter with tie bar and galvanized shutter clips to hold the shutter tight to the frame for less vibration. With a quick twist of the clips, the shutter can be removed for easy cleaning and maintenance. Typhoons are designed for exceptional performance, low maintenance and low operating cost for your agricultural, horticultural or industrial application.
FEATURES Heavy duty 18 gauge galvanized housing Available in 24" - 50" models Smooth spun venturi to maximize airflow Rugged X-frame motor mount for stability and quiet operation Available with or without a performance boosting cone Ships fully assembled except shutter and/or cone 3, 4, or 6 blade galvanized or 3 blade cast aluminum props Two speed available on 50" Single Phase No cone models come with 1" x 2" wire mesh guards that are hot dip galvanized after welding. The guard is attached to the housing with poly guard clips to reduce noise and vibration Totally enclosed, maintenance-free, high-efficiency motors have completely sealed ball bearings
