J&D Manufacturing

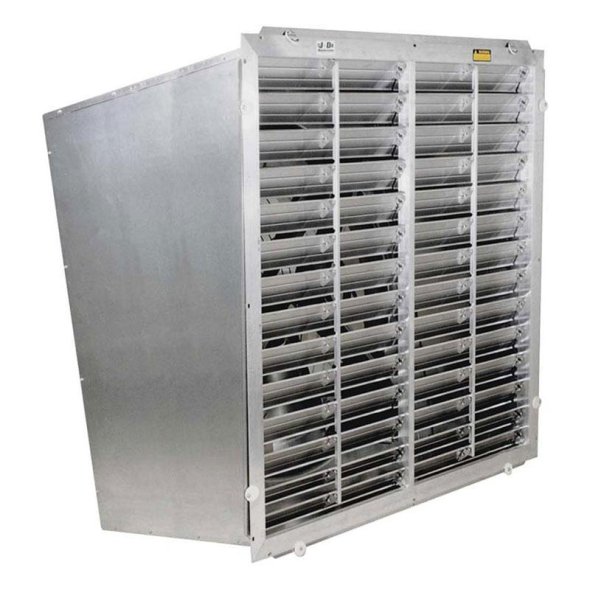

Typhoon Slant Wall Exhaust Fan 50 inch 18160 CFM 3 Phase Belt Drive VNS50S3

Item #: VNS50S3

Blade Diameter

50"

CFM

18160

Voltage

208 / 240 / 480

Drive

Belt

List: $1,505.51

Price: Only $1,412.43

You Save 6% ($93.08)

Build Time: 4 Weeks

Ships By: Fedex Freight

Add to Quote

lowest price
Guarantee

Certified Dealer

Quality expert advice

Specs for Typhoon Slant Wall Exhaust Fan 50 inch 18160 CFM 3 Phase Belt Drive VNS50S3

Item #: VNS50S3

Amps: 3.1 / 1

Blade Diameter: 50"

Blade Material: Galvanized Steel

CFM: 18160

Country of Origin: USA

Drive Type: Belt

Harmonized System Code: 841459

Hertz: 60

Horsepower: 1

Made in the USA: Yes

Phase: 3 Phase

Product Dimensions: 60" x 60" x 48"

Product Weight: 316 lbs

Speed: 1 Speed

Sq. Ft. Coverage: 16960 ft²

Voltage: 208 / 240 / 480

Watts: 20

Ships From: Wisconsin, USA

Title 20 Compliant: Yes

Typhoon Slant Wall Exhaust Fan 50 inch 18160 CFM 3 Phase Belt Drive VNS50S3

The Typhoon slant wall exhaust fan from J&D Manufacturing has a heavy gauge galvanized housing and X-frame motor mount to provide a solid structure. Typhoon fans include an aluminum shutter with tie bar and galvanized shutter clips to hold the shutter tight to the frame for less vibration. With a quick twist of the clips, the shutter can be removed for easy cleaning and maintenance. Typhoons are designed for exceptional performance, low maintenance and low operating cost for your agricultural, horticultural or industrial application.

FEATURES
Heavy duty 18 gauge galvanized housing
Available in 24" - 50" models
Smooth spun venturi to maximize airflow
Rugged X-frame motor mount for stability and quiet operation
Available with or without a performance boosting cone
Ships fully assembled except shutter and/or cone
3, 4, or 6 blade galvanized or 3 blade cast aluminum props
Two speed available on 50" Single Phase
No cone models come with 1" x 2" wire mesh guards that are hot dip galvanized after welding. The guard is attached to the housing with poly guard clips to reduce noise and vibration
Totally enclosed, maintenance-free, high-efficiency motors have completely sealed ball bearings
