Specs for TID Centrifugal Duct Inline Fan 14 inch 1530 CFM 3 Phase TID250-34-32 - 208V
Item #: TID250-34-32-208V
14"
Rugged Glass Reinforced Polyamide
1530
Direct
14"
841459
0.75
3 Phase
18" x 18" x 20"
80 lbs
1 Speed
208 / 240 / 480
1 Year
New York, USA

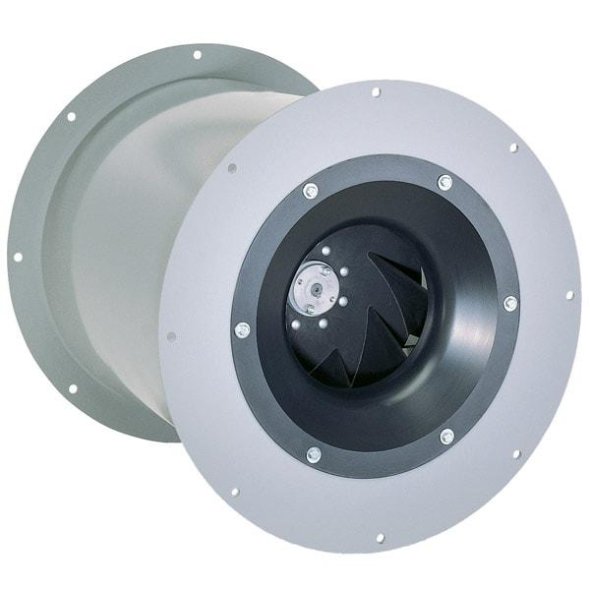

TID Centrifugal Duct Inline Fan 14 inch 1530 CFM 3 Phase TID250-34-32 - 208V
Where high efficiency, high-pressure development, and quiet operation are required, TID centrifugal in-line fans provide a matchless solution. This innovative fan is available in diameters from 12" through 24", with capacities ranging to 4,258 cfm. The TID in-line centrifugal fan utilizes aTEK backward curved airfoil impeller for exceptional performance and sound characteristics. Rugged glass reinforced polyamide impellers combine precision injection molding techniques with modern high strength plastics to produce a wheel that is stronger than steel, yet half its weight. TID fans are ideal for process ventilation, cabinet cooling, and OEM applications.
FEATURES Backward curved airfoil impellers Non-overloading power characteristics Super quiet, highly efficient performance Rugged glass reinforced polymide impeller Baked polyester powder coat finish Custom mounting arrangements available External junction box Standard NEMA motors
