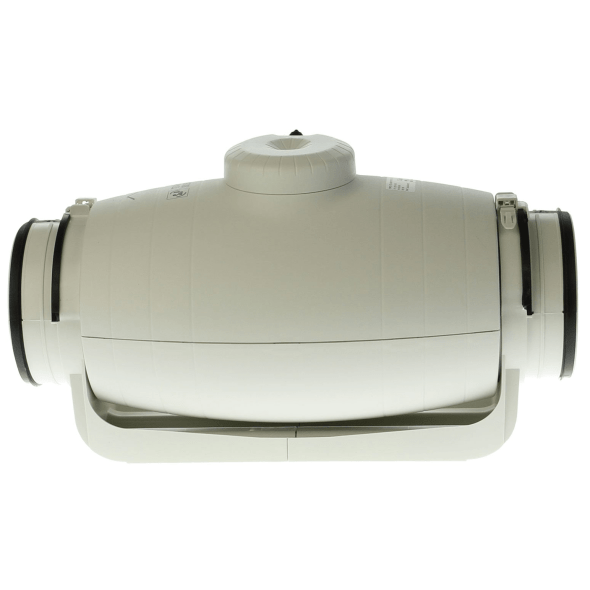

TD Silent Multi-Purpose Inline Mixed Flow Duct Fan 4 inch 203 CFM TD-125XS

TD-silent fans are extremely quiet, low profile mixed-flow fans. Manufactured in plastic material with an external connection box, the body is easily dismantled with a single speed controllable 115V 60Hz motor. Sound waves are directed through the perforated inner skin and absorbed by a layer of sound-absorbent insulation. Plus the TD-SILENT is fitted with rubber gaskets on the inlet and outlet to facilitate installation, absorb vibrations, and provide a virtually air-tight seal.

The TD-SILENTs offer the same simple installation features as the extremely popular TD-MIXVENT fans with an integral mounting bracket, removable body, and a terminal box that can be rotated 360 degrees. The low profile of the fans makes them the ideal product for installations with low height limits, such as the case of suspended ceilings.

FEATURES
Mixed flow impeller for excellent airflow to pressure performance ratio
Direct connection, single-speed motor
Ideal for applications where space is limited
HVI certified
AMCA tested
cULus listed
ENERGY STAR qualified
