Specs for TALON - Aluminum Backward Curve Pressure Blower 10 inch Inlet / 8 inch Outlet 3000 CFM at 1" SP 3 Phase NHADP15-Q-3-T - Clockwise Rotation / Top Horizontal Discharge
Item #: NHADP15-Q-3-T-CW-TH
23.6 / 11.8
16.5"
3000
USA
Direct
841459
60
10
8"
Yes
8"
3 Phase
22" x 21" x 24"
250 lbs
1 Speed
2215 ft²
240 / 480
1 Year
Ohio, USA

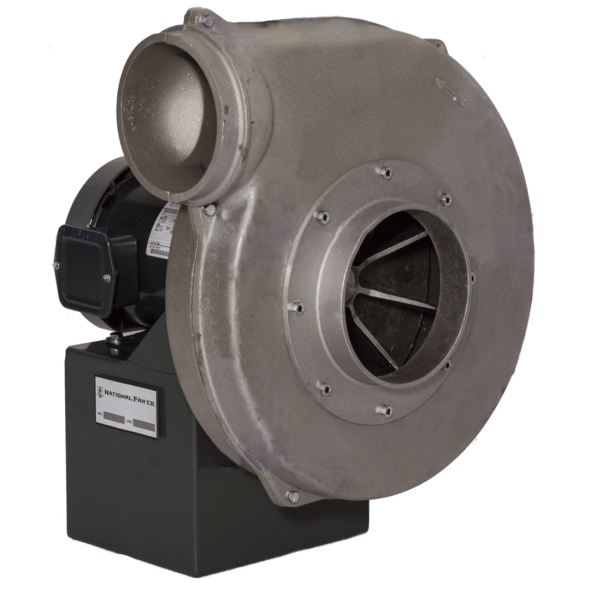

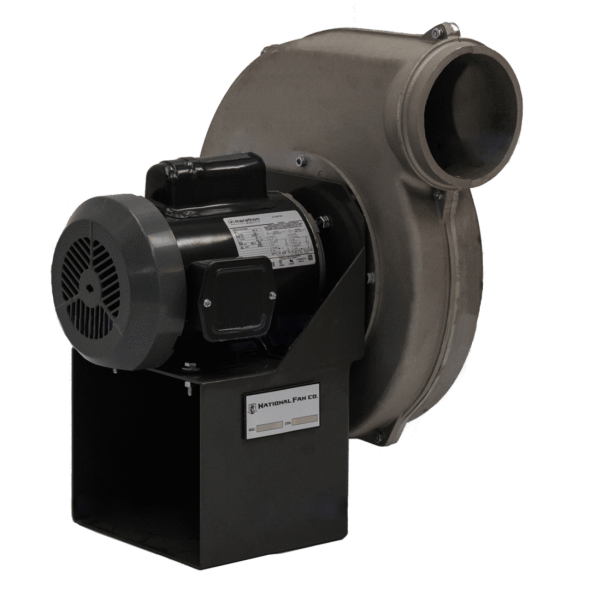

TALON - Aluminum Backward Curve Pressure Blower 10 inch Inlet / 8 inch Outlet 3000 CFM at 1" SP 3 Phase NHADP15-Q-3-T - Clockwise Rotation / Top Horizontal Discharge
Designed for use in situations requiring moderate CFM movement against relatively high static pressure systems. Excellent for fume exhaust, mounted on dust collectors, non-abrasive material conveying, vehicle exhaust removal in garages and fire departments, air source for air knives, and combustion air for gas burners.
FEATURES Cast aluminum housing and wheels are naturally non-sparking and meet AMCA Type B spark resistant construction Round outlets and inlets facilitate connection to standard pipe and duct diameters with slip fit connections or flange to flange Six housing sizes and multiple wheel diameters provide a wide range of available performance ratings Suitable for use in air streams to a maximum of 150°F Most sizes available in clockwise or counter-clockwise rotation with eight different discharge positions Standard motor is industrial duty TEFC enclosure All models run at 3450 RPM
