Specs for WTA Tube Axial Fan Wet Environment 34 inch 19000 CFM Belt Drive 3 Phase WTA34T30300M
Item #: WTA34T30300M
34"
Cast Aluminum
19000
Canada
Belt
841459
60
3
Yes
3 Phase
38" x 38" x 27"
250 lbs
19000
1 Speed
240 / 480
1 Year Limited
New York, USA

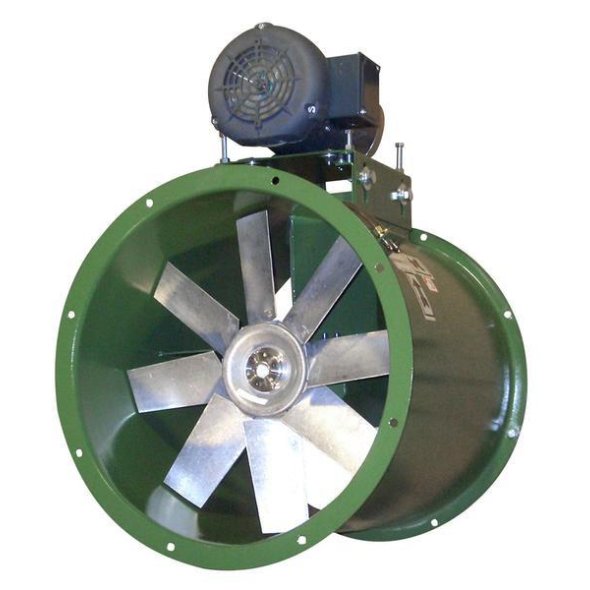

WTA Tube Axial Fan Wet Environment 34 inch 19000 CFM Belt Drive 3 Phase WTA34T30300M
NOTE: THESE FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
FEATURES Heavy duty pillow block bearings with moisture displacement collars. For moisture laden air with a maximum temperature of 200°F (95°C) Adjustable motor base Extended lube lines with external grease fittings TEFC motors are standard Cast aluminum blades up to 48"; fans 54" & 60" have polypropylene reinforced fiberglass blades Airfoil shaped belt tube for improved efficiency Motor, belts, drives and bearings are isolated from air stream Fan blades tested in accordance with AMCA standard 210, figure 12
