Specs for SPARROW - Panel Exhaust Fan 36 inch 12240 CFM 1 Speed PF367
Item #: PF367
6.6 / 3.3
36"
12240
Canada
Direct
841459
0.5
Yes
1 Phase
41" x 41" x 13"
88 lbs
1 Speed
120 / 240
New York, USA

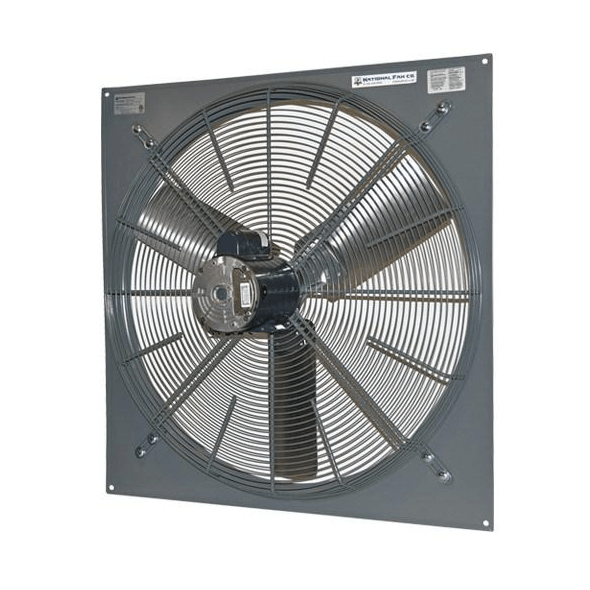

SPARROW - Panel Exhaust Fan 36 inch 12240 CFM 1 Speed PF367
Fans are sturdily constructed, direct drive, horizontal discharge for industrial, commercial and farm applications.
FEATURES: Sturdily constructed direct drive, horizontal discharge fan. Durable powder coat finish. Standard heavy duty OSHA motor mount/guard. Motors are totally enclosed, with overload protection. 1 Phase 1/3 HP 1 Speed 115/230 V 850 RPM 12240 CFM 88 lbs 1 Year Limited Warranty
*NOTE: The motor Full Load Amperage ratings are meant to be used as a General guideline only. The ratings are from the primary motor supplier. These amperage ratings may vary slightly if a different motor supplier is used. It is also possible that a motor manufacture may modify / improve / update a motor in which the amperage rating will change slightly.
DIMENSIONS:
*Sizes are approximates and may vary based on motor manufacturer
