Specs for SkyBlade Shop Prop 10 foot HVLS Ceiling Fan w/ Remote 7850 Sq Ft Coverage 3 Phase 230 Volt SP-1030-523-3
Item #: SP-1030-523-3
5.2
10"
Aluminum
USA
Direct
841459
60
1.35
Yes
10'
3 Phase
25" x 120" x 120"
110 lbs
Variable Speed
7850 ft²
240
1/5 Year
Michigan, USA

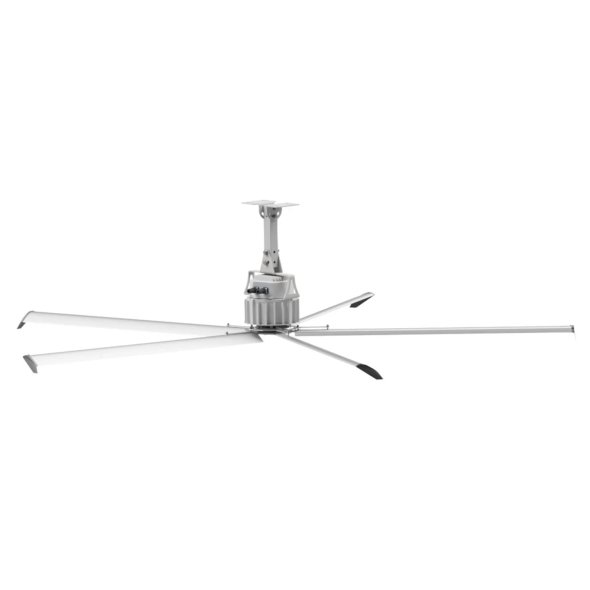

SkyBlade Shop Prop 10 foot HVLS Ceiling Fan w/ Remote 7850 Sq Ft Coverage 3 Phase 230 Volt SP-1030-523-3
NOTE:FANS ARE NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
*Square Footage rating is for heat destratification only.A larger size fan may beneeded to feel cooling effects at ground level. Please contact us for sizing recommendations based on your needs.*
Standard downrod is 1 foot. Fan hub is 10 1/4 inch.
SkyBlade's ShopProp HVLS ceiling fan is equipped with five extruded anodized, high performance E420 design aluminum airfoils. Contoured for maximum air movement, so environments become cooler faster. The wingtips are constructed of nylon 66, and can redirect outward airflow into downward airflow to improve and direct airflow downwards.
1/4" powder-coated steel and anodized aluminum resists rusting and corrosion even in cold and damp environments. Stainless steel safety brackets are included. The direct drive system allows this fan to operate incredibly quiet.Totally enclosed direct drive, IP65 rated ECM motor. Onboard VFD is factory assembled and programmed for minimum start/stop torque loads.
Single Yoke Control. Includes Fwd/Rev switch and 0-10 speed pot to control fan speed. 100 Ft., 6-core shielded cable. One included with each fan ordered.
DESTRATIFICATION Reduce energy costs up to 30% by minimizing the temperature differential from the ceiling to the floor Eliminate hot/cold layers Maintains comfort levels throughout building Improved employee comfort Noise produced when operating is close to that of an average library Less run time on existing HVAC units
COOLING Create constant airflow to reduce perceived temperatures by 10 to 15 degrees Fahrenheit Maintains comfort levels throughout the building More energy efficient than average small high speed fans with much higher air volumes Minimizes humidity and condensation
