SkyBlade Hazardous Location HVLS Ceiling Fan 24 foot w/ Remote 45216 Sq Ft Coverage 115 Volt EXP-2473-512-1

NOTE: FANS ARE NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.

*Square Footage rating is for heat destratification only.A larger size fan may beneeded to feel cooling effects at ground level. Please contact us for sizing recommendations based on your needs.*

BLADES

Equipped with 5 blades of precision 6005-T5 extruded aluminum alloy.

High performance STOL design

GEARBOX

Precision finished gears for low noise & long service life

Sealed with lifetime synthetic oil

Robust 3" output shaft for strength

Nylon bushing on input

CONSTRUCTION

Mounting is to be 1/4" powder coated steel

All construction is to be protected from the elements

Powder-coated steel hub plate & cylinder

Stainless steel safety brackets

Installed Weight: 236 Lbs

VFD

NEMA1, IP 10 metal enclosure with hinged door. (NEMA 4x, IP 66 available)

Factory assembled & programmed

Minimum start/stop torque loads

Single Yoke Control. Includes Fwd/Off/Rev switch and 0-10 speed pot to control fan speed. 100 Ft., 6-core shielded cable. One included with each fan ordered.

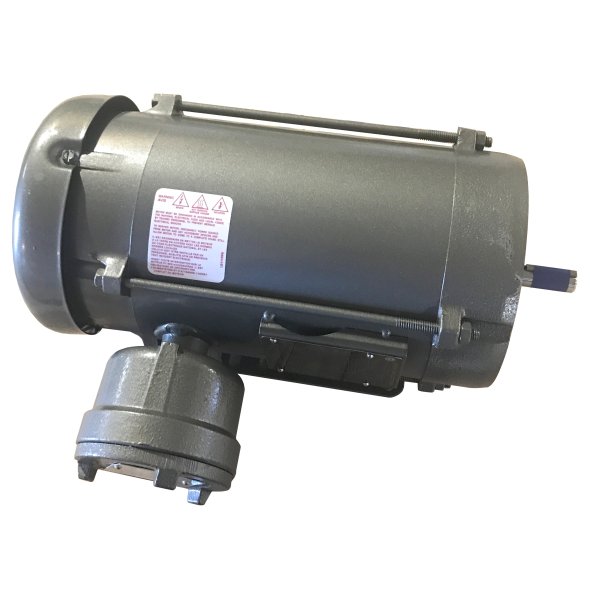

MOTOR

Totally Enclosed Fan Cooled (TEFC)

Explosion Proof*

Division 1 - Class 1 C & D

Division 1 - Class 2 F & G

Class F insulation

1.0HP (0.75 kW) nominal horsepower

APPROVALS

ETL

CE

C-Tick

STANDARD LIMITED WARRANTY

1 year: Motor & Reducer

1 year: Electronics

10 years: Blades

* The product is Hazardous Location. Only the motor is Explosion proof.

IMPORTANT: Touch-N-Go controller is not Explosion Proof. Must be installed outside of hazardous area.
