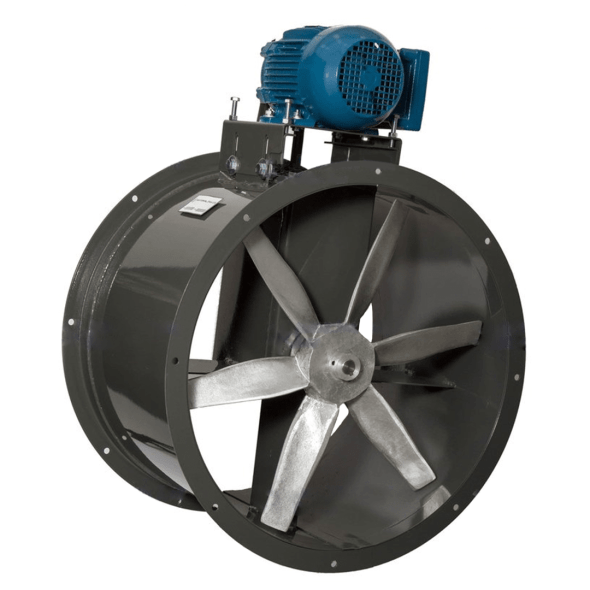

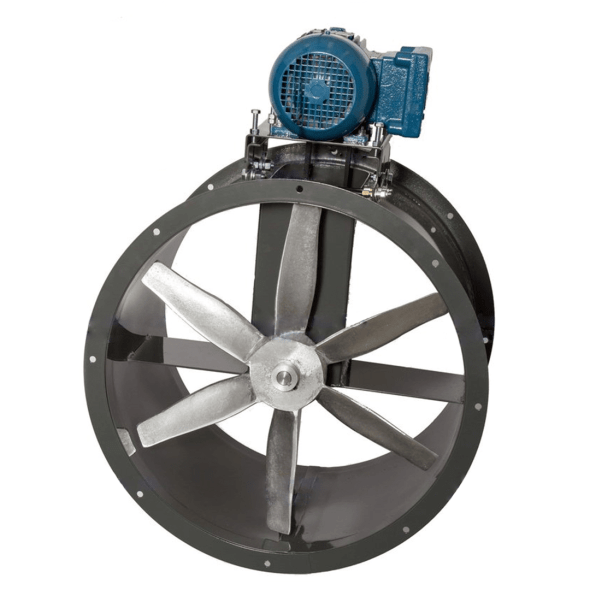

SEAHAWK - Wet Environment Tube Axial Fan 12 inch 1875 CFM 3 Phase Belt Drive NBC12-C-3-T

Designed for use in high moisture or contaminated air streams. Ideally suited for use on industrial parts washers for excess water vapor removal. Suitable for use in dry-off ovens, kilns and low temperature furnaces to 375°F with the addition of high temperature package.

FEATURES
Bearings located in a sealed watertight chamber and protected by a water slinger and shaft seal
Standard propellers are cast aluminum; carbon steel and stainless steel propellers also available
Standard construction suitable to 225°F and up to 375°F with high temperature package Fabricated steel propeller is standard above 275°F
Available in 304 or 316 stainless steel construction for harsh or contaminated environments
Adjustable motor base allows for proper belt tension for maximum belt life
Pulleys are rugged cast iron or turned steel
Motors are high quality industrial grade available in single or three phase - totally enclosed or explosion proof

• User Manual
• Spec Sheet

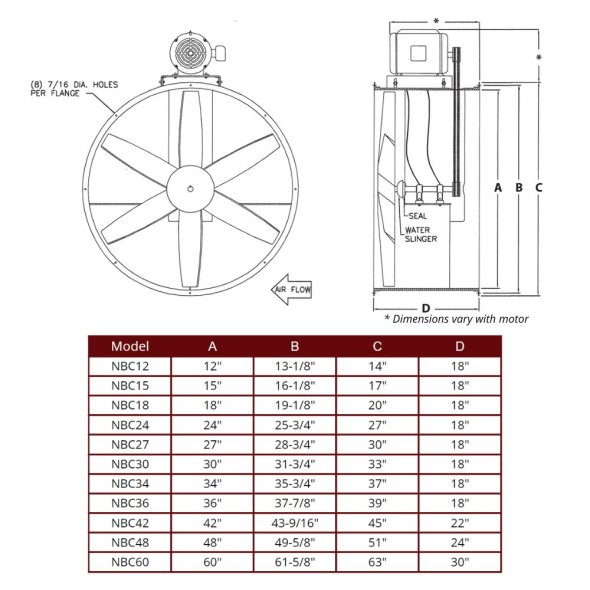

• Flange Dims & Bolt Hole Spacing
