QuietCool 2 Speed 5024 CFM Classic Whole House Fan CL-5400

Our Classic Series is the powerful Whole House Fan that started us on our journey of accomplishing energy-efficient whole-home cooling. With our classic design, patented technology, and reliable production, you can start your low cost journey exactly where ours did.

Don't have a conventional attic space above your living area? Utilize a Vertical Adapter and cool your home with a side attic. These adapters were created as some homes do not have attics above their living area.

FEATURES
7.3 sq. ft. of net free attic venting required for proper ventilation
Cools and ventilates homes up to 2700 sq. ft. for optimum performance

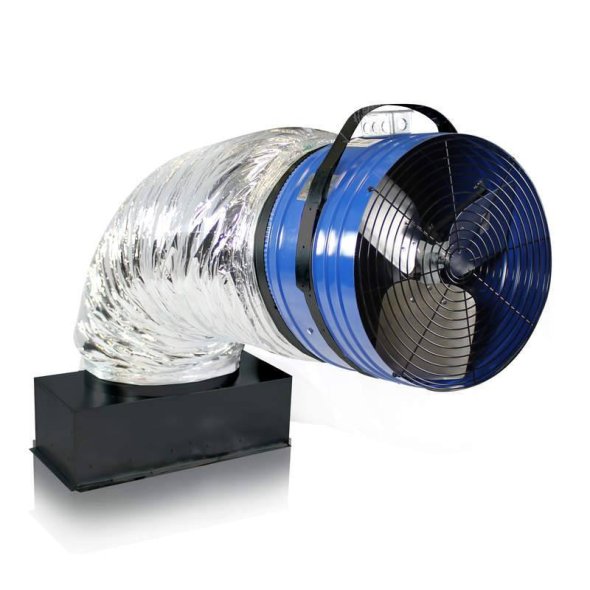

Fan motor head hangs from the rafters in the attic with a small ceiling cut-out for the air intake grille (14 in. x 30 in. ceiling cut-out)
Moves air at a rate of 5462 CFM
786-Watt, 2-speed PSC motor ensures efficient operation and airflow
Installation is simple with a typical 1 to 2-hour install time with no framing or joist-cutting required (fits 16 or 24 on-center)

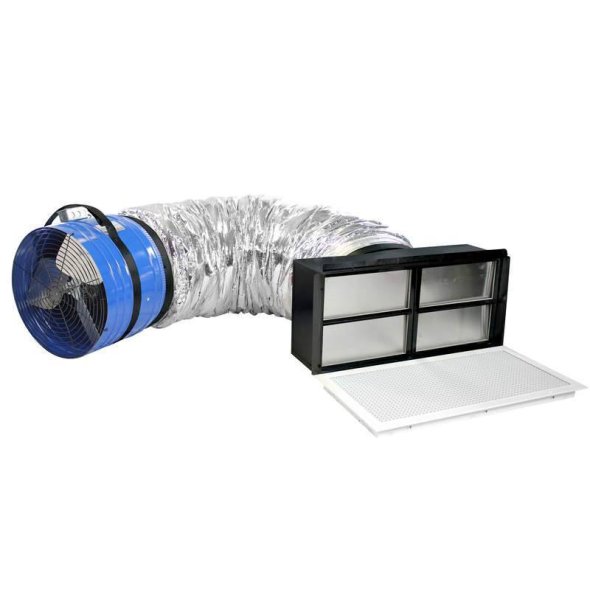

R5 damper box at the ceiling level helps insulate the home from the attic during the cold times of the year when the fan is off
Ceiling Rough In Opening:14 1/4" x 30 1/4"
Removable Grille Outside Dimension: 16" x 32"
Duct Diameter: 20"
Duct Length: 9 feet
