QMark MUH Electric Wall & Ceiling Unit Heater 10200 BTU 3 kW 208V 1 Phase MUH0381

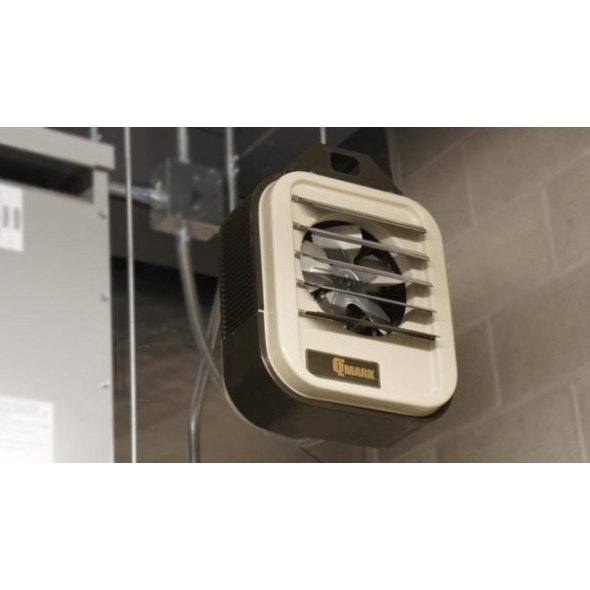

This rugged unit heater works well in industrial settings. Install it in factories, warehouses, garages, stairwells, power stations or mechanical rooms. Its powerful output capacity even makes it suitable for heating your loading dock or other indoor/outdoor transition spaces.

FEATURES
Small- to medium-case construction is 20-gauge steel with larger cabinet 18-gauge steel; completely enclosed fan motor
Advanced pull-through air flow design draws air across heating element for even air distribution and cooler element operation
Specially designed venturi outlet to meet required additional air throw in vertical position
Branch circuit fusing (when required)
Aluminum-finned, copper-clad steel sheath heating element extends life due to cooler sheath temperature and faster heat dissipation
Automatic reset linear thermal cut-out, capillary type, provides protection over entire length of element areas (manual reset protection available on made-to-order basis)
No piping flues, valves or traps needed for installation
Individual stainless steel adjustable louvers to direct air flow
