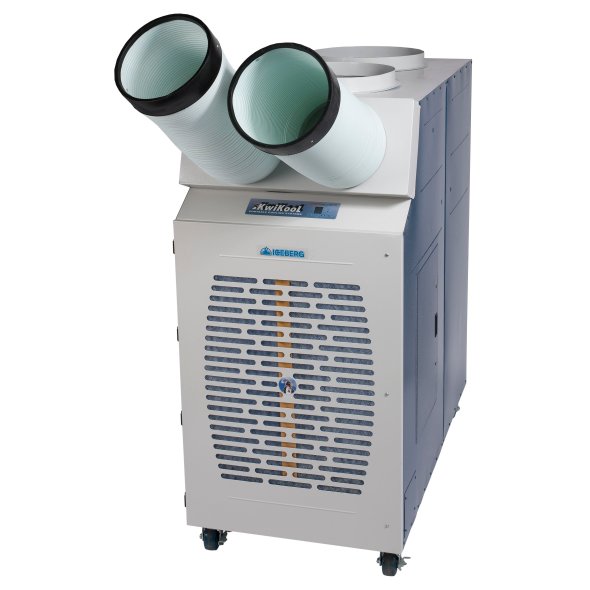

NOTE: FLANGES IN IMAGE ARE SOLD SEPARATELY. CEILING KIT IS REQUIRED FOR OPERATION.

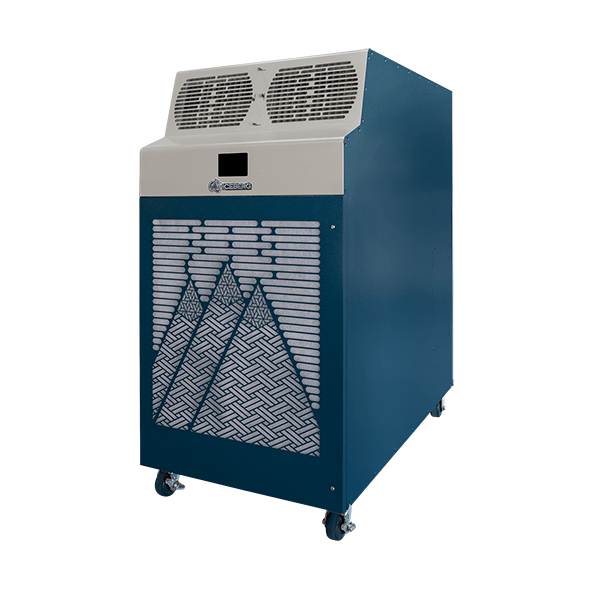

The KIB12023 (nominal 10-ton or 120,000 BTU) is the only indoor portable offering a unit in this size and capacity. Additionally, the KIB12023 is a dual stage system for redundancy and economy. The Iceberg Series, KwiKool's Flagship Line of portables is used for both primary and backup air conditioning. With its full-featured design, high sensible cooling and balanced air system, the KIB12023 is the perfect solution for cooling server rooms or office spaces. The Iceberg Series is quick and easy with its "plug and play" technology and tops the competition in its small size, big performance and tons of features. From its hi-tech microprocessor controls and self-diagnostics, to the long list of standard features (most of which are not even available in other brands), the Iceberg Series out performs, out lasts, and out features other portables and all at a price that is comparable to the no frills products that are available.
All Iceberg Series units come standard with our exclusive I/O Integral Condenser Dual Ducting that provides isolated and balanced air pressure within the space for maximum cooling efficiency. The condenser utilizes THD, KwiKool's exclusive Twin Hyperdrive Technology with Ultra Low Ambient Temperature Capability using a Variable Frequency Drive. The KIB12023 has automatic restart after power failure and runs on a 230-volt/80-amp Three-Phase circuit, which must be installed by a qualified electrician. The unit comes with an internal high lift condensate pump and a 5-gallon exterior condensate tank with float activated unit cut off for short term use.
FEATURES Made in the USA 120,000 BTU/H - 10 Ton capacity air-cooled with Two (2) stage refrigerant system Compact yet Powerful Ultra Low ambient controls utilizing VFD technology Wide Operating range of 60°F ETL and CETL listed to UL and CSA standards Multi-function microprocessor control with a large, easy-to-read LCD display Self-Diagnostics that include audible alarm and LCD visual display readout for system fault conditions Input/Output Alarm Contacts for connection to building systems Condensate overflow protection Thermostatic Expansion Valve Heavy duty compressor with automatic restart and short cycle protection Motors and compressors have overload protection High-pressure safety with manual reset Low-pressure safety with automatic reset Automatic freeze protection using hot gas bypass and fan cycling Heavy-duty locking casters Rifle tube coils for efficient heat transfer Fully insulated, heavy duty galvanized steel cabinet with KwiKool's exclusive E-Z Clean™ scratch-resistant attractive two-tone HammerCoat™ epoxy protective finish for optimum durability, efficiency, low maintenance and quiet operation Sight glass with moisture indicator Filter dryer for Moisture protection
