King PAW Stainless Steel Pic-A-Watt Marine Wall Heater 7677 BTU 240V PAW2422-SS

NOTE: THIS UNIT IS FINAL SALE AND CANNOT BE RETURNED OR CANCELLED. REQUIRES THERMOSTAT FOR OPERATION.

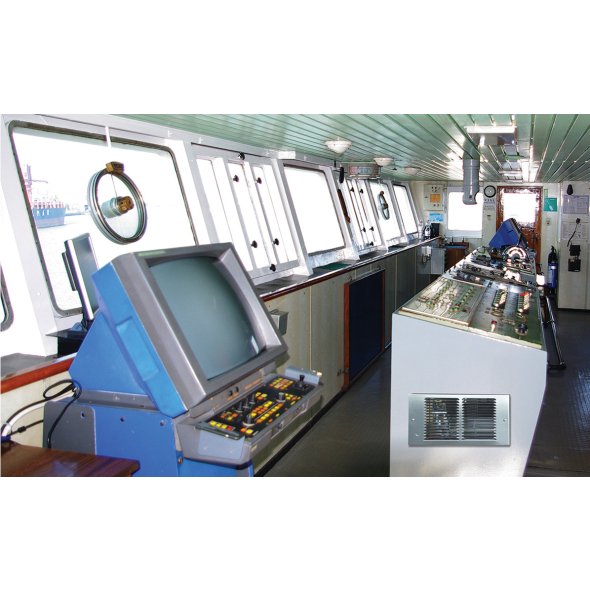

This is the only electric heater specifically designed to be used in marine applications. It has all the great features of the Pic-A-Watt® heater (including a stainless steel grill, wall can and interior) enabling it to stand up to the corrosive environment on saltwater boats. The wall can is flanged for recess mounting into a wood bulkhead. Consult factory or review catalog for other models, including a high-efficiency motor and a Dial-A-Watt™ switch allowing you to change the wattage with a grill-mounted selector switch.

FEATURES
Constructed of 20 gauge 304 stainless steel and have a depth gauge label on top of the wall can. All fasteners are stainless steel or nickel plated.
A tangential cylindrical blower, delivering 65 CFM, shall be driven by a shaded pole, permanently lubricated.
Equipped with King's patented thermal overload Smart Limit Protection®, which disconnects elements and motor in the event normal operating temperatures are exceeded.
Wall can is 20 gauge stainless steel and shall contain a minimum of three (3) knockouts through which power leads are brought. Minimum 4" clearance to floors and 6" to sidewalls. Zero clearance to combustibles in wall.
Grill is louvered, one-piece design with square corners on all four sides and clear epoxy powder-coated.
Approval: UL listed
