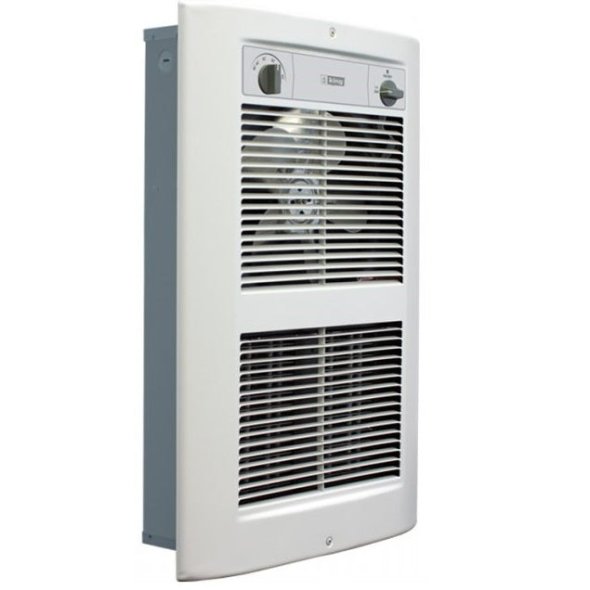

King LPW Large ComfortCraft Designer Pick-A-Watt Wall Heater 15355 BTU 240V LPW2445T-S2-WD-R

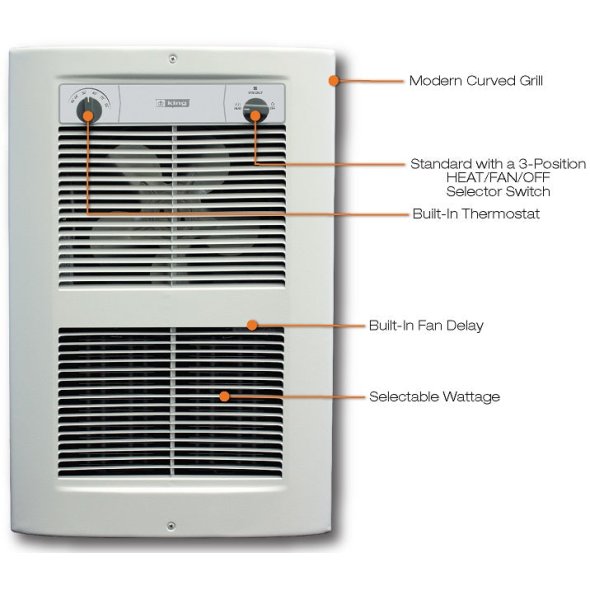

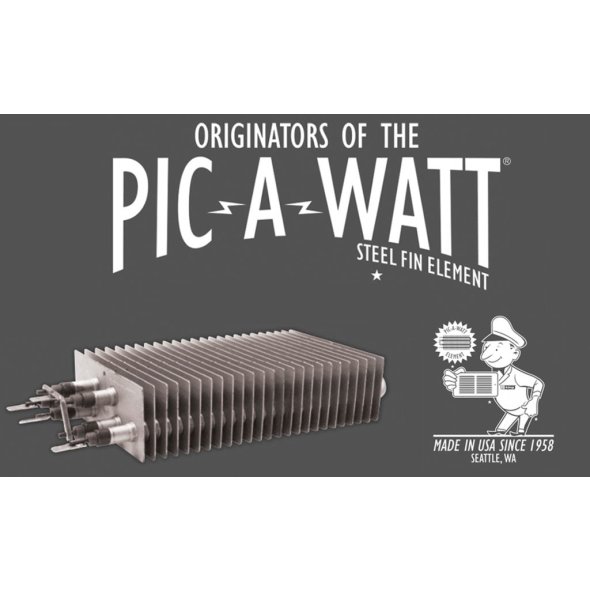

King redefines comfort with a sleek and modern new architectural design. Offering higher output than our industry leading PAW heater. King's exclusive dual Pic-A-Watt steel fin elements allow customers to select from a range of wattage options, tailoring the heater to an area's specific heating requirements. With up to 4500W, this is our most popular large wall heater, used in both residential and commercial applications. Standard with a 3-position Heat/Fan/Off Switch and a fan delay to help dissipate heat from the high-mass steel plate fin elements thereby prolonging heater life and increasing energy efficiency. The high quality built-in thermostat has degrees on the label so temperature selection is easy and accurate.

FEATURES
High efficiency, dynamically balanced 5-blade aluminum fan.
1-Pole built-in thermostat 45-80°F operating range.
Heaters shall be equipped with King's patented thermal overload Smart Limit Protection®, which disconnects elements and motor in the event normal operating temperatures are exceeded.
3-position switch provides heating and summer fan-only operation. The DPST off switch provides a "positive off" that disconnects all ungrounded conductors.
Wall-box is 20 gauge electro-galvanized steel with factory installed ground-wire. Minimum 4"clearance to floors and 6"to sidewalls. Zero clearance to combustibles in the wall. Recommended 10" clearance to floors and 16" to sidewalls.
Grill is 20 gauge steel finished in a gloss white, powder-coated paint.
Approvals: cULus
Proudly Made in the USA

• LPW-Instructions.pdf
• LPW-Informational.pdf
