Specs for AX Wall Exhaust Fan 16 inch 2 Speed 2580 CFM Direct Drive AX16-3
Item #: AX16-3
3.4
16"
Aluminum
2580
Canada
Direct
841459
60
0.25
Yes
1 Phase

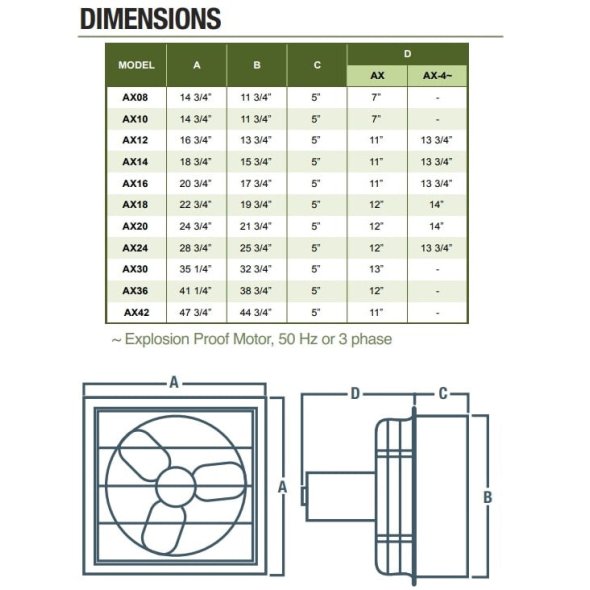

21" x 21" x 16"
34 lbs
2 Speed
1770 ft²
120
1 Year
New York, USA

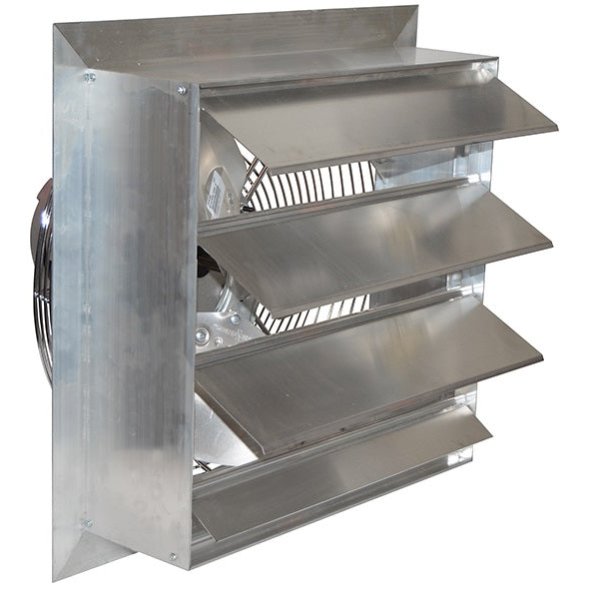

AX Wall Exhaust Fan 16 inch 2 Speed 2580 CFM Direct Drive AX16-3
The Canarm AX series exhaust fans are a sturdily constructed, direct drive, horizontal discharge fan that is typically used for general ventilation of factories, garages, warehouses and other industrial or commercial buildings. The AX fans are available in multiple single-speed variations as well as two-speed and variable speed models. The AX series housings are constructed of heavy duty aluminum with built in shutters that automatically open when the fan starts and gravity closes when the fan stops.

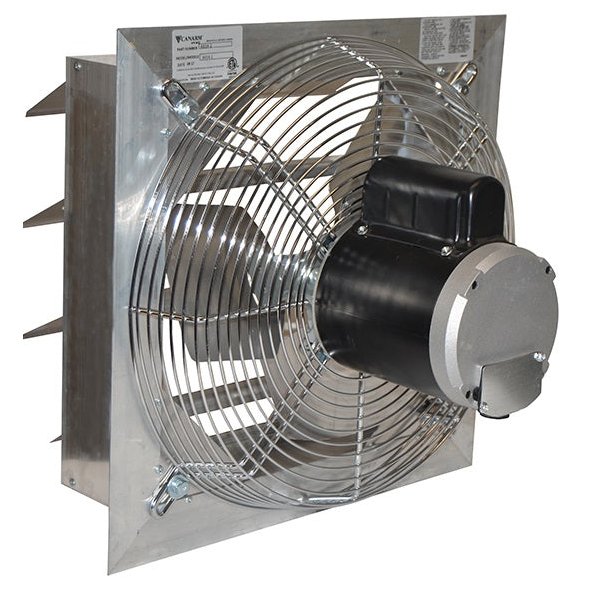

FEATURES These models have a rugged, sturdily constructed housing made from all aluminum extrusions Louvers open automatically when the fan starts up and close when the fan stops 8" - 24" models have heavy wire chrome plated OSHA guards on intake side of fan Motors are mounted on heavy gauge welded steel rod motor mounts that have a Bright Zinc finish Totally enclosed air over motor with overload protection Fans come fully assembled and 100% of fans are tested for proper operation before shipping
