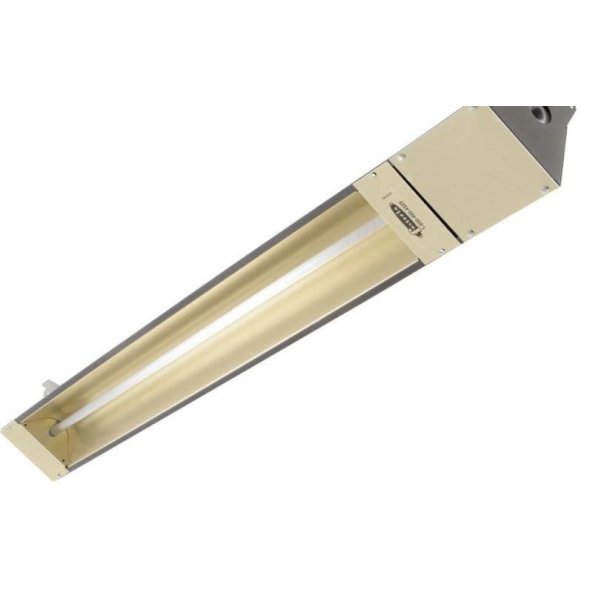

Fostoria OCH Series Outdoor/Indoor Rated Quartz Infrared Heater 59 Inch 10239 BTU 277V OCH-57-277VE

Fostoria multi-purpose OCH series electric infrared heaters are designed to provide efficient spot heating for many commercial and industrial applications. All models operate with a single quartz tube emitter included with the heater, are easily installed, and are equipped with spectral reflectors for excellent radiant output. They are built with corrosion- resistant materials and are listed for both Indoor (Excluding Residences) and Outdoor applications in the USA and Canada.

FEATURES
Frosted Quartz Tube heating element (included)
Listed for suspended, totally exposed (outdoor) and indoor spot heating applications (not for private Residences)
Finish: High-Temp Brown Powder Coated Finish or Corrosion Resistant Stainless Steel 24 gauge housing
60 degree Symmetric Heat Pattern
Gold anodized Aluminum reflector and end caps
Painted models are direct wire, unless specified and are supplied with 6" lead wires for field connection in the internal wiring compartment. These models are available with a factory installed 6' cord set. The 208V model must have a field supplied plug.
Stainless steel models include an electrical enclosure assembled to the end of the heater housing and (2) 6" long lead wires for direct field connection.
Two 2' ft. long mounting chains and four S-Hooks included
The OCH-Series can be surfaced mounted using the supplied mounting brackets which allow up to a 45 degree horizontal tilt adjustment.
Made in U.S.A.
