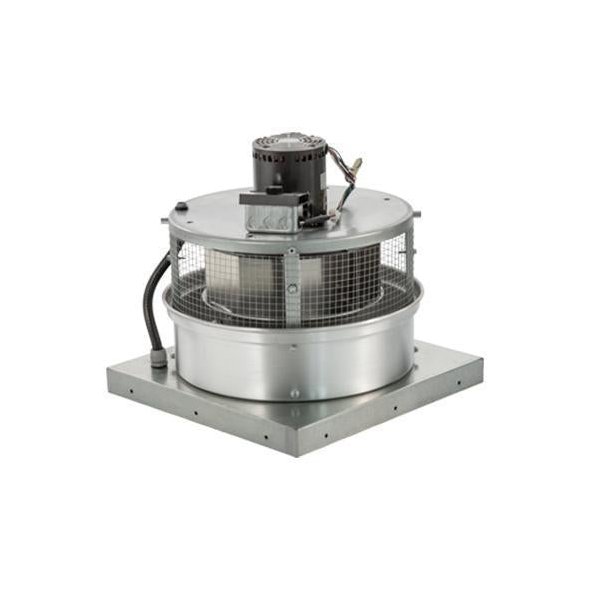

FloAire Centrifugal Downblast Roof Exhaust Fan 24 inch 8000 CFM 3 Phase Variable Speed Direct Drive DR240H

Centrifugal Direct Drive Fans are designed to pull more air under higher static pressures. The efficient, balanced wheel and air inlet design contribute to maintaining low noise levels and extended motor life. These fans are especially suited for installation in hospitals, schools, motels and hotels, auditoriums, office buildings and light industrial areas.

Roof Mount Model ONLY

FEATURES
Variable Frequency Drive - 5 HP Max, 200/240 V, Three Phase, 16.5 A Max., NEMA 1 Enclosure - Part Needs Programming
Wiring Package for Commercial Fans. Manual Speed Control Variable Frequency Drive Included
VFD factory mounted and wired in unit control vestibule
VFD Mounting bracket
Insulated Heat Baffle
Spun aluminum housing for rust-free, weather resistant durability
Standard bird screen
Non overloading backward inclined wheels, blades and inlets fabricated from aluminum
Wire conduit to provide a clear channel for electrical connections
Safety disconnect

• User Manual
• Exploded Parts View

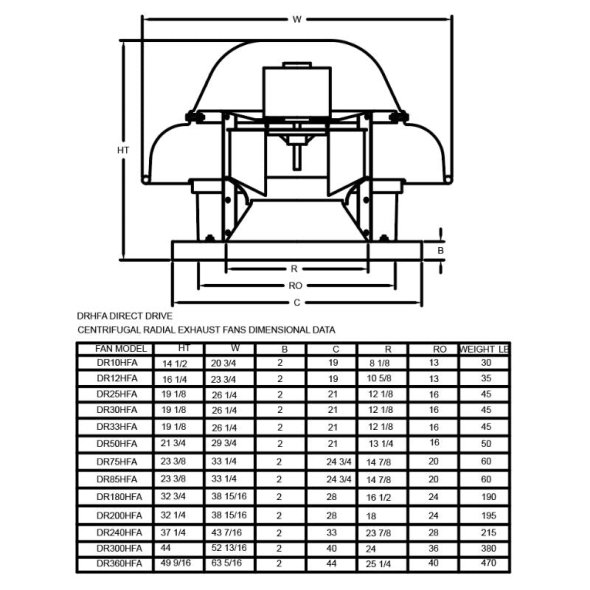

• Dimensions
