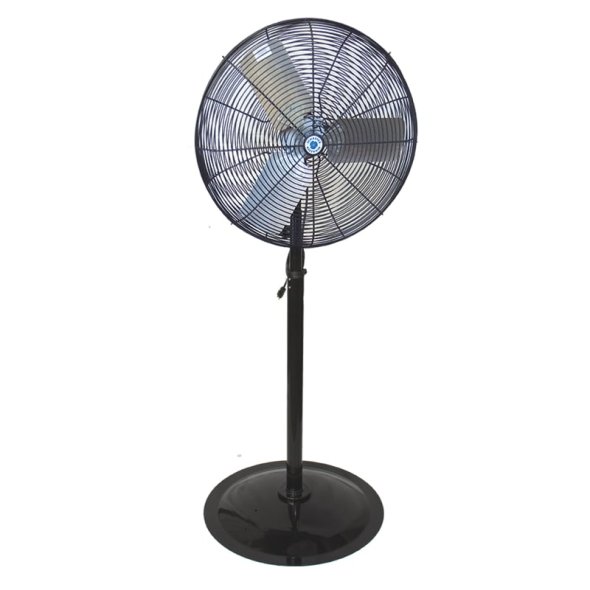

Explosion Proof Pedestal Fan 30 inch 10670 CFM 30PF-HL

Item #: 30PF-HL

Blade Diameter

30"

CFM

10670

Phase

1 Phase

Voltage

120 / 208 / 240

Qty	Unit price

1	$1,403.40
2	$1,361.30
4	$1,333.23
7	$1,305.16

Your Price: USD1403.40$1,403.40 / each ea

Build Time: 10 to 15 Business Days

Ships By: Fedex Freight

each

Add to Quote

lowest price
Guarantee

Certified Dealer

Quality expert advice

Specs for Explosion Proof Pedestal Fan 30 inch 10670 CFM 30PF-HL

Item #: 30PF-HL

Amps: 9.8 / 4.9

Blade Diameter: 30"

Blade Material: Aluminum

CFM: 10670

Country of Origin: USA

Drive Type: Direct

Harmonized System Code: 841459

Hertz: 60

Horsepower: 0.5

Made in the USA: Yes

Motor Class: I, II

Motor Division: 1

Motor Group: C, D, E, F, G

Motor Type: Explosion Proof

Phase: 1 Phase

Product Dimensions: 35" x 35" x 15"

Product Weight: 68 lbs

RPM: 10670

Speed: 1 Speed

Voltage: 120 / 208 / 240

Warranty: 2 Year

Ships From: Minnesota, USA

Explosion Proof Pedestal Fan 30 inch 10670 CFM 30PF-HL

NOTE: HAZARDOUS LOCATION FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.

For spot cooling in atmospheres containing flammable or explosive vapors, gases, or dusts. Motor is UL listed for Class 1, division 1, Groups C & C, and Class 2, Division 1, Groups E,F, & G for flammable vapors combustible dust environments. Meets OSHA safety regulations while delivering maximum air flow in wide range of hazardous location applications.

MOTOR CLASSIFICATION
Class 1, Division 1, Groups C & D
Class 2, Division 1, Groups E, F & G

FEATURES
Metallic color blades, black guard color, pedestal mount
Aluminum blades, motor CSA
1 Phase, Single speed, 115 Voltage
Non-sparking aluminum blades for increased safety
Powder coated steel guards for corrosion resistance and durability
Thermally protected, heavy-duty, maintenance free
Matched high quality motors and blades for maximum airflow
Must be hardwired; cord and switch is not included
Made in USA
UL listed
