Specs for EP-3 Electronic Low Voltage Programmable LCD Thermostat 24V EP-3
Item #: EP-3
1
USA
841459
Yes
4" x 5" x 2"
1 lbs
24
1 Year
Washington, USA

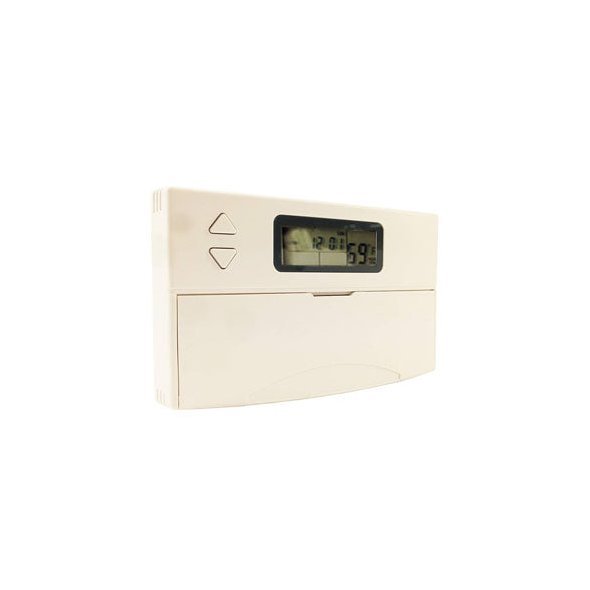

EP-3 Electronic Low Voltage Programmable LCD Thermostat 24V EP-3
The EP3 Low voltage electronic programmable thermostat has voltage rating of 24 VAC/VDC and current rating of 1.0 Amps and can be programmed for four time periods per day to save energy. The EP3 Thermostat keeps track of actual operational time. It also allows for manual operation and offers a temperature of range 50 to 90 deg F. It has LCD display format with large front size. It measures 5-1/2 Inch x 1-1/4 Inch x 3-1/2 Inch. Thermostat has three-position system switch and two-position fan switch. It includes two AA batteries. It features separate base plate to aid installation.
FEATURES Pre-Programmed: Energy Saving 5-1-1 Schedule, Four Time Periods per Day Heat / Off / Cool -- On / Auto Fan 1.0 Amps at 24 VAC / DC 50°F to 90°F (10°C to 32°C) Separate Base Plate to Aid Installation Battery Operated: Allows Maximum System Compatibility (Two "AA" Batteries Included) Energy Usage Monitor: Keeps Track of Actual Operational Time Hold Mode Operation: Allows for Manual Operation. May Be Used for Vacation Setback 1-Year Limited Warranty Temperature Range:50°F to 90°F (10°C to 32°C) Electrical Load Limit:1.0 Amps at 24 VAC / DC Compressor Protection Delay:4 minutes Temperature Display: Selectable Celsius or Fahrenheit Time Display: Selectable 12 or 24 hour Temperature Differential Fahrenheit: Preset: = 3° : 2° above, 1° below set point Selectable: 1° to 18° : +0° to 9°, -0° to 9°. Temperature Adjustment:1° Display Range: 32°F to 99°F Control Range: 44° to 95°F (7°C - 35°C) Heating Unit Switch: E - Fan controlled by thermostat; G - Fan controlled by heating unit System Switch:3 position (COOL - OFF - HEAT) Fan Switch: 2 position (ON - AUTO)
