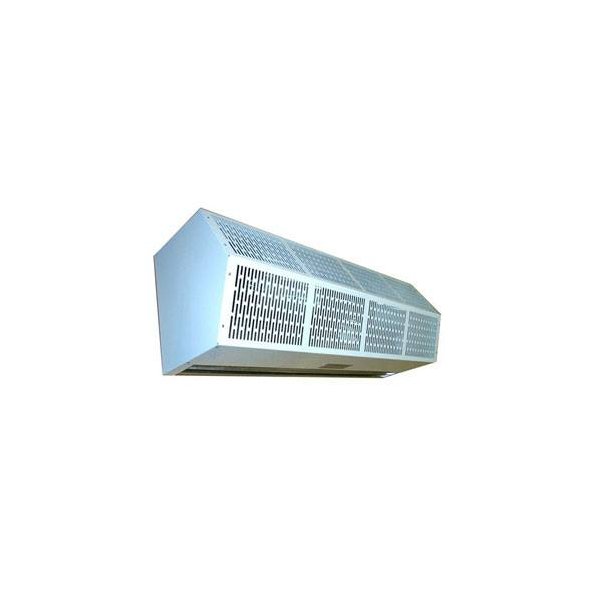

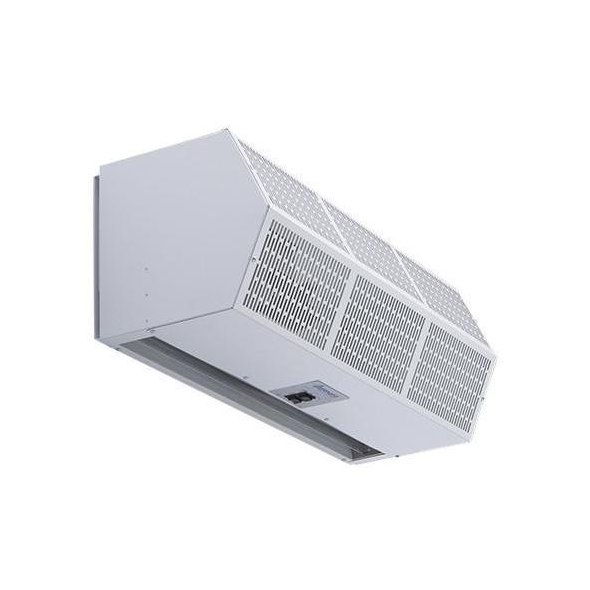

Berner Commercial High Performance 10 Air Curtain 72 inch 3608 CFM CHD10-2072A

NOTE:THIS FAN IS NON-RETURNABLE AND CANNOT BE CANCELLED.

For mounting heights to 10' (environmental separation) and 8' (insect control)

Designed to meet the functional needs of the application and to integrate into the space AMCA certified ambient & electric heated models - meetsIECC building codewhich allows AMCA certified air curtains as an alternative to vestibules

IDEAL APPLICATIONS
Service / Employee Doors
Main Entrances
Conveyors
Shipping and Receiving

FEATURES
Patented venturi open helical element with point suspension
14" high x 15" deep
1/2 HP - 3 speed motor(s)
Factory installed fan speed

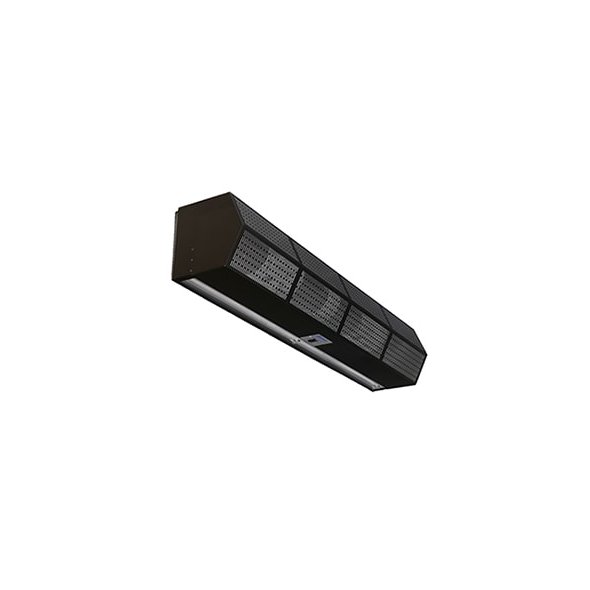

White or Black aluminum exterior cover
Wall and top mounting
Thermal overload protection
Galvanized steel frame
Simple design, high performance, white powder-coated exterior.
Single lengths from 3' to 10'
No Assembly Required
Simple to install, operate, and maintain
Made in U.S.A.
Wall plate included
5/6" threaded inserts for top mounting
Bottom access panel for easy access to internal components
2 Year Warranty
