AX Wall Exhaust Fan 14 inch Variable Speed 1600 CFM Direct Drive AX14-1VHE

Canarm

AX Wall Exhaust Fan 14 inch Variable Speed 1600 CFM Direct Drive AX14-1VHE

Item #: AX14-1VHE

Blade Diameter

14"

CFM

1600

Voltage

120

Drive

Direct

Free Fedex Ground shipping

Qty	Unit price

1	$303.42
4	$294.32
8	$288.25

Your Price: USD303.42$303.42 / each ea

Build Time: 5 to 7 Business Days

Ships By: Fedex Ground

Highly recommended add-ons:

These can only be purchased alongside the main item

Addons

12 inch Galvanized Weather Hood GH-XF12

$49.22

More Info

each

Add to Quote

lowest price
Guarantee

Certified Dealer

Quality expert advice

Specs for AX Wall Exhaust Fan 14 inch Variable Speed 1600 CFM Direct Drive AX14-1VHE

Item #: AX14-1VHE

Amps: 1

Blade Diameter: 14"

Blade Material: Aluminum

CFM: 1600

Country of Origin: Canada

Drive Type: Direct

Harmonized System Code: 841459

Hertz: 60

Horsepower: 0.07

Made in Canada: Yes

Motor Class: I, II, III

Motor Division: 1, 2

Motor Group: A, B, C, D, E, F, G

Motor Type: Totally Enclosed

Phase: 1 Phase

Product Dimensions: 18.75" x 18.75" x 16"

Product Weight: 25 lbs

RPM: 1600

Speed: Variable Speed

Voltage: 120

Warranty: 1 Year Limited

Ships From: New York, USA

AX Wall Exhaust Fan 14 inch Variable Speed 1600 CFM Direct Drive AX14-1VHE

All variable speed fans will run at a single speed unless used with a controller. Please see our control options here for a control that pairs with this fan.

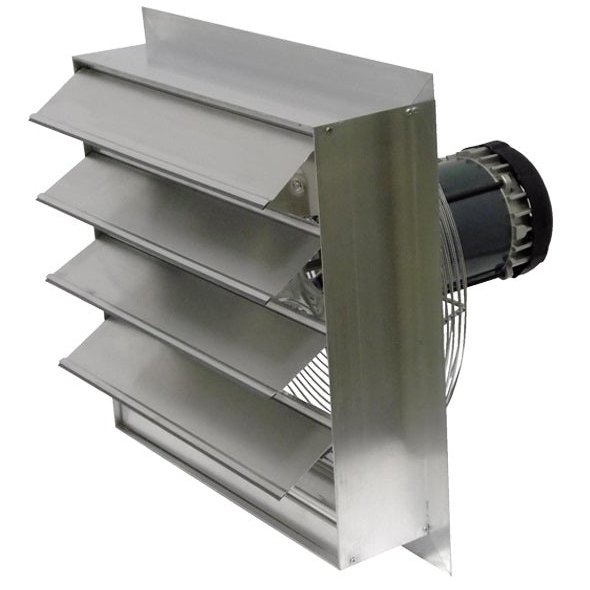

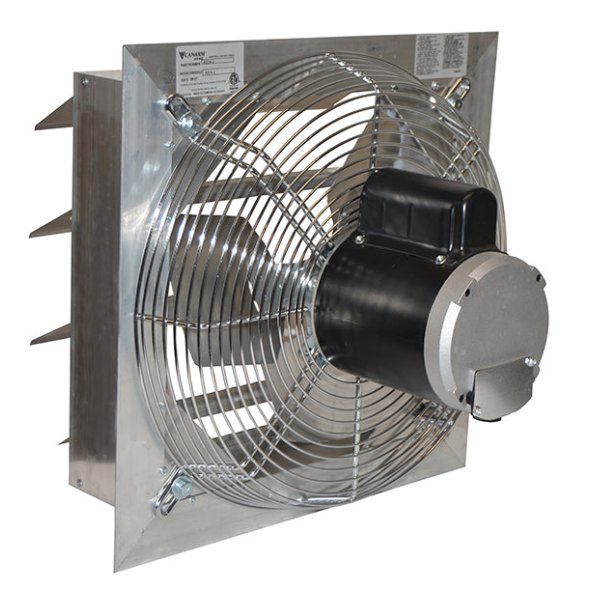

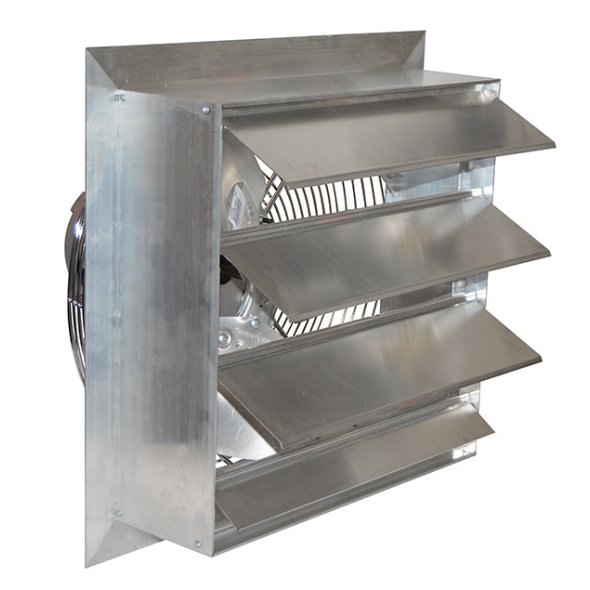

The Canarm AX series exhaust fans are a sturdily constructed, direct drive, horizontal discharge fan that is typically used for general ventilation of factories, garages, warehouses and other industrial or commercial buildings. The AX fans are available in multiple single-speed variations as well as two-speed and variable speed models. The AX series housings are constructed of heavy duty aluminum with built in shutters that automatically open when the fan starts and gravity closes when the fan stops.

FEATURES
Variable speed motors are high efficiency motors
Can be run as single speed
These models have a rugged, sturdily constructed housing made from all aluminum extrusions
Louvers open automatically when the fan starts up and close when the fan stops
8" - 24" models have heavy wire chrome plated OSHA guards on intake side of fan
Motors are mounted on heavy gauge welded steel rod motor mounts that have a Bright Zinc finish
Totally enclosed air over motor with overload protection
Fans come fully assembled and 100% of fans are tested for proper operation before shipping
