Specs for AX Explosion Proof Aluminum Wall Exhaust Fan w/ Shutters 24 inch 5520 CFM AX24-4
Item #: AX24-4
6.6 / 3.1 / 3.3
24"
Aluminum
5520
Canada
Direct
841459
60
0.33
Yes
I, II
1
C, D, F, G
Explosion Proof
1 Phase
29" x 29" x 17"
57 lbs
5520
1 Speed
120 / 240
1 Year
New York, USA

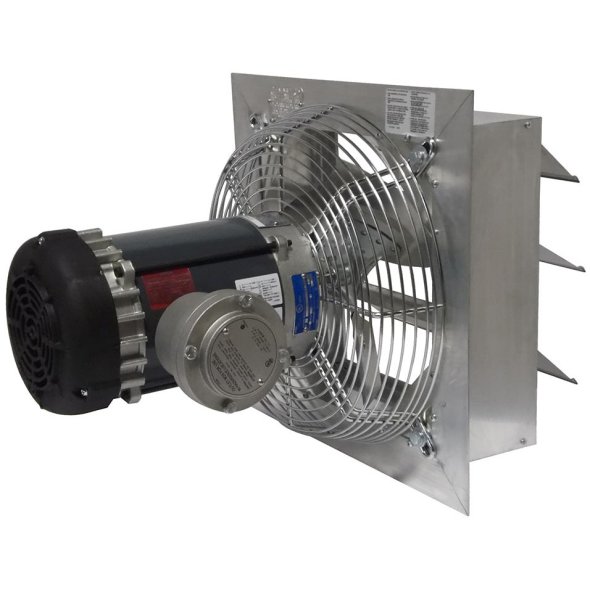

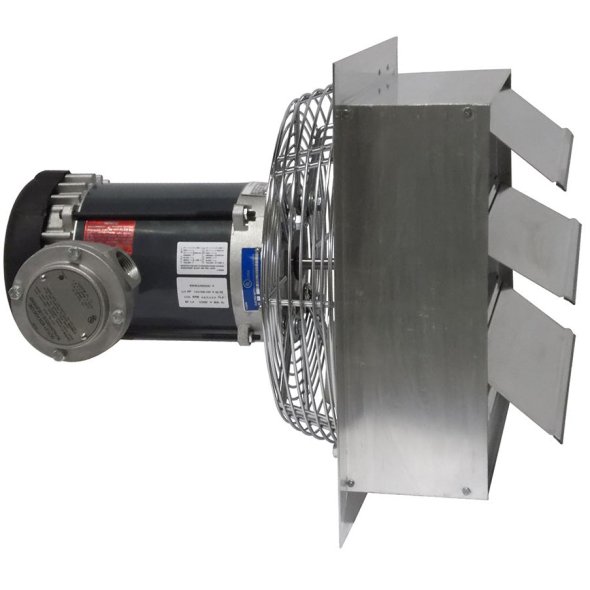

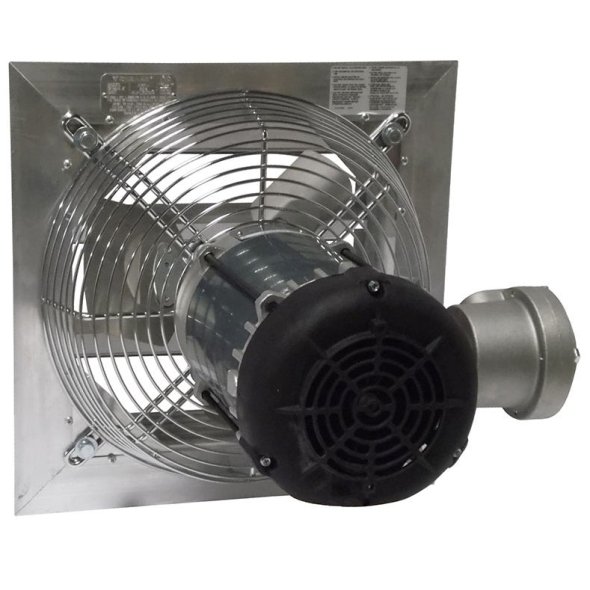

AX Explosion Proof Aluminum Wall Exhaust Fan w/ Shutters 24 inch 5520 CFM AX24-4
NOTE:HAZARDOUS LOCATION FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
The AX series exhaust fan is a sturdily constructed, direct drive, horizontal discharge fan that is typically used for general ventilation of factories, garages, warehouses and other industrial or commercial buildings. The AX fans are available in multiple single-speed variations as well as two speed and variable speed models. The AX series housings are constructed of heavy duty aluminum with built in shutters that automatically open when the fan starts and gravity closes when the fan stops.
MOTOR CLASSIFICATION Class I - Group C & D Class II - Group F & G
FEATURES AX24 - 6 Louvers Sturdily constructed from all-aluminum extrusions Standard heavy duty OSHA motor mount guard Motors are totally enclosed, air over with overload protection
