Specs for Atlantic Blowers Two Stage Regenerative Blower 2.5 inch 776 CFM 3 Phase AB-1402
Item #: AB-1402
76 / 44
2.5"
776
USA
841459
60 / 50
25
2.5"
Yes
2.5"
3 Phase
28" x 28" x 28"
353 lbs
2 Stage
240 / 480
1 Year
Texas, USA

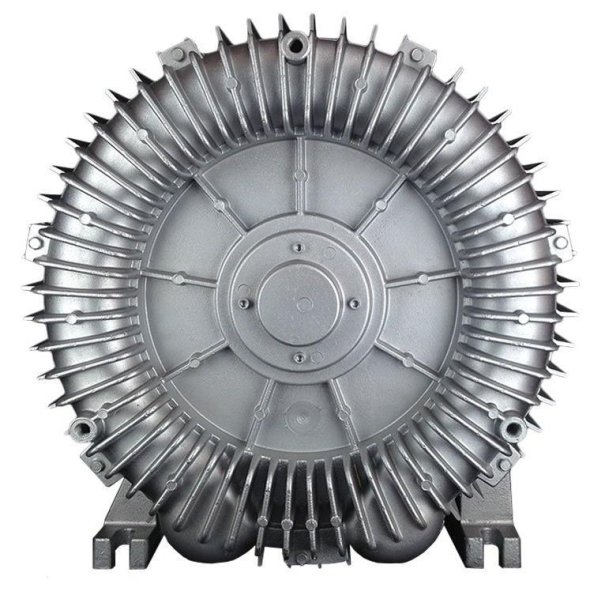

Atlantic Blowers Two Stage Regenerative Blower 2.5 inch 776 CFM 3 Phase AB-1402
NOTE: CORD AND PLUG NOT INCLUDED.
The Atlantic Blowers AB-1402 Three Phase/Double Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-1402 produces a maximum flow of 776 CFM.
The maximum pressure and vacuum is 118 in H2O and 134 in H2O respectively. The AB-1402 has a power output of 25 HP (18.5 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency).
The voltage is 220-275V/380-480V with an FLA rating of 76.0/44.0. Measuring at a distance of 3 ft. the blower will produce a noise level of 81 dbA. The inlet/outlet connection size is 2.50" female NPT.
