Specs for Atlantic Blowers Two Stage Regenerative Blower 2 inch 230 CFM 3 Phase AB-902
Item #: AB-902
24 / 12
2"
230
USA
841459
60 / 50
8.5
2"
Yes
2"
3 Phase
24" x 24" x 24"
159 lbs
2 Stage
240 / 480
1 Year
Texas, USA

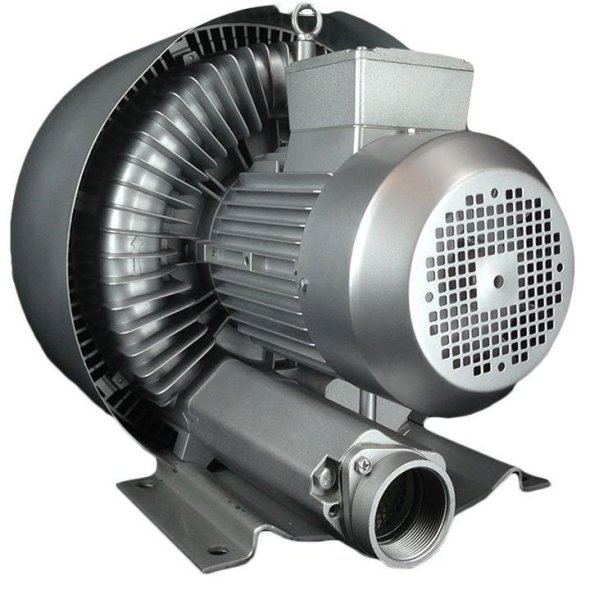

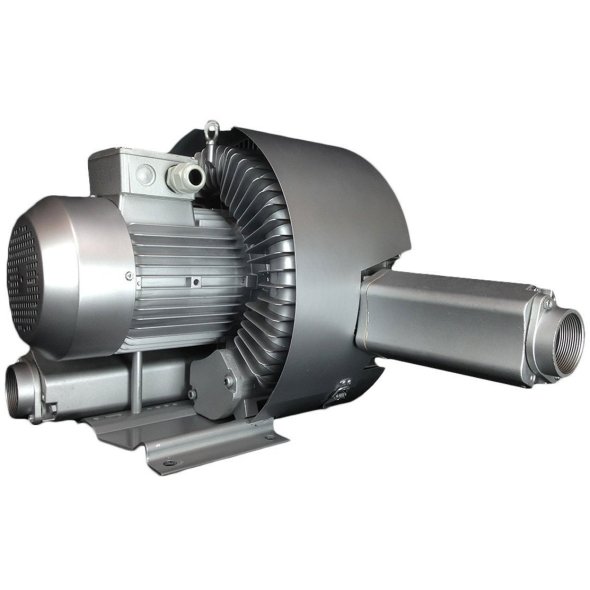

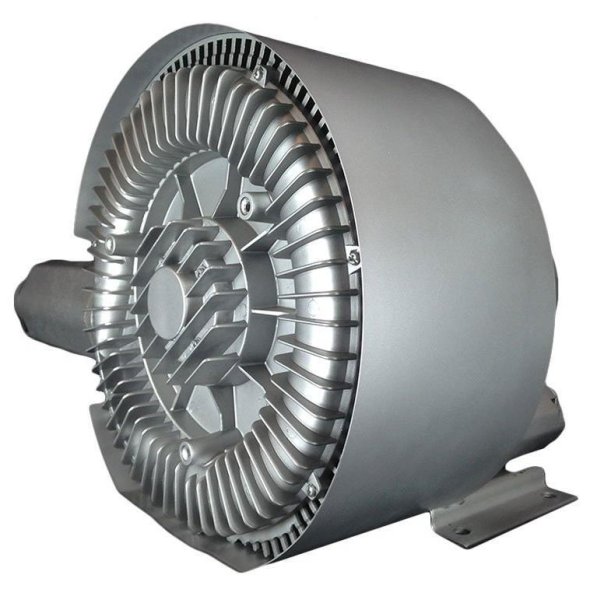

Atlantic Blowers Two Stage Regenerative Blower 2 inch 230 CFM 3 Phase AB-902
NOTE: CORD AND PLUG NOT INCLUDED.
The Atlantic Blowers AB-902 Three Phase/Double Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-902 produces a maximum flow of 230 CFM.
The maximum pressure and vacuum is 201 in H2O and 177 in H2O respectively. The AB-902 has a power output of 8.5 HP (6.3 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency).
The voltage is 220-275V/380-480V with an FLA rating of 24.0/12.0. Measuring at a distance of 3 ft. the blower will produce a noise level of 79 dbA. The inlet/outlet connection size is 2.00" female NPT.
