Specs for Atlantic Blowers Two Stage Regenerative Blower 1.25 inch 64 CFM 3 Phase AB-202
Item #: AB-202
3.9 / 2.3
1.25"
64
USA
841459
60 / 50
1.2
1.25"
Yes
1.25"
3 Phase
15" x 15" x 15"
45 lbs
2 Stage
240 / 480
1 Year
Texas, USA

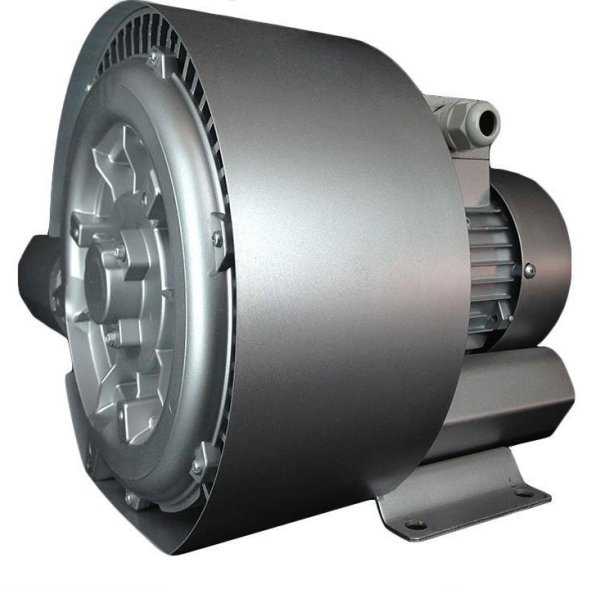

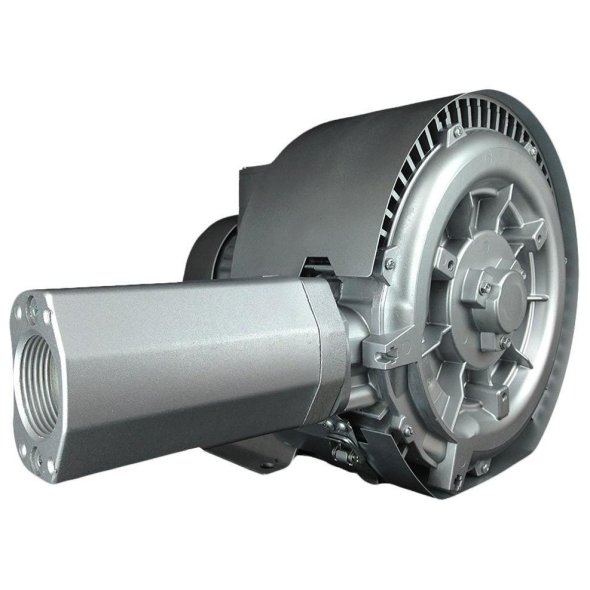

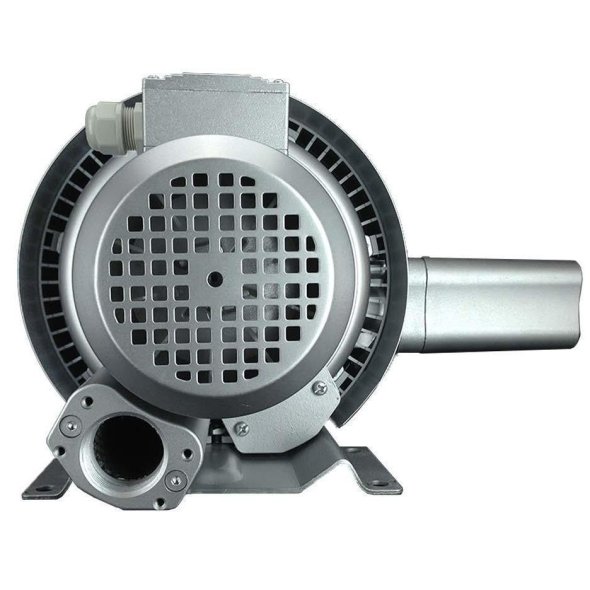

Atlantic Blowers Two Stage Regenerative Blower 1.25 inch 64 CFM 3 Phase AB-202
The Atlantic Blowers AB-202 Three Phase/Double Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-202 produces a maximum flow of 64 CFM.
The maximum pressure and vacuum is 101 in H2O and 101 in H2O respectively. The AB-202 has a power output of 1.2 HP (0.85 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency).
The voltage is 220-275V/380-480V with an FLA rating of 3.9/2.3. Measuring at a distance of 3 ft. the blower will produce a noise level of 68 dbA. The inlet/outlet connection size is 1.25" female NPT.
