Specs for Atlantic Blowers Single Stage Regenerative Blower 4 inch 791 CFM 3 Phase AB-1100
Item #: AB-1100
37 / 21.4
2.54"
791
USA
841459
60 / 50
15
4"
Yes
4"
3 Phase
30" x 30" x 30"
220 lbs
1 Stage
240 / 480
1 Year
Texas, USA

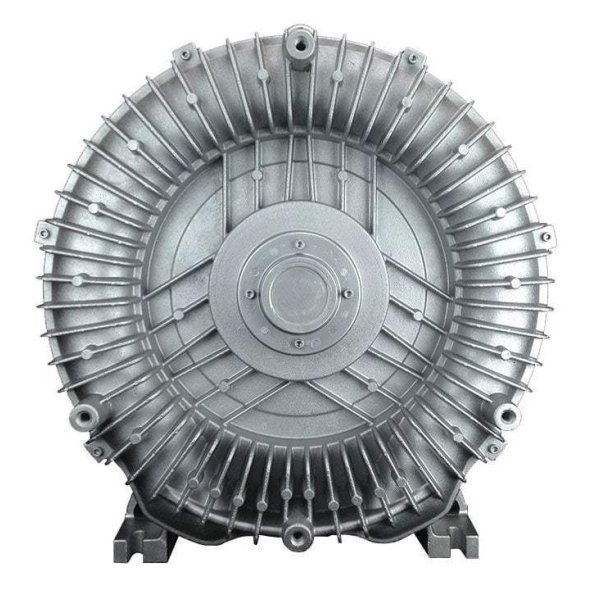

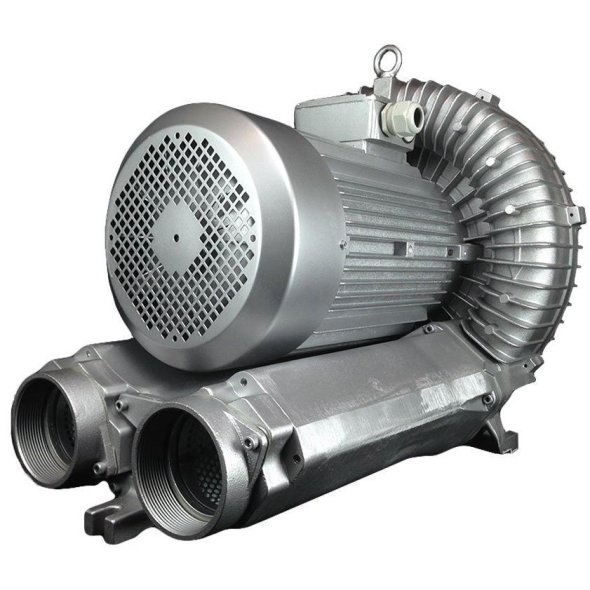

Atlantic Blowers Single Stage Regenerative Blower 4 inch 791 CFM 3 Phase AB-1100
NOTE: CORD AND PLUG NOT INCLUDED.
The Atlantic Blowers AB-1100 Three Phase/Single Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-1100 produces a maximum flow of 791 CFM.
The maximum pressure and vacuum is 68 in H2O and 72 in H2O respectively. The AB-1100 has a power output of 15 HP (11 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency).
The voltage is 220-275V/380-480V with an FLA rating of 37.0/21.4. Measuring at a distance of 3 ft. the blower will produce a noise level of 81 dbA. The inlet/outlet connection size is 4.00" female NPT.
