Specs for Atlantic Blowers Single Stage Regenerative Blower 2 inch 230 CFM 3 Phase AB-700
Item #: AB-700
16.2 / 9.3
2"
230
USA
841459
60 / 50
6
2"
Yes
2"
3 Phase
18" x 18" x 18"
91 lbs
1 Stage
240 / 480
1 Year
Texas, USA

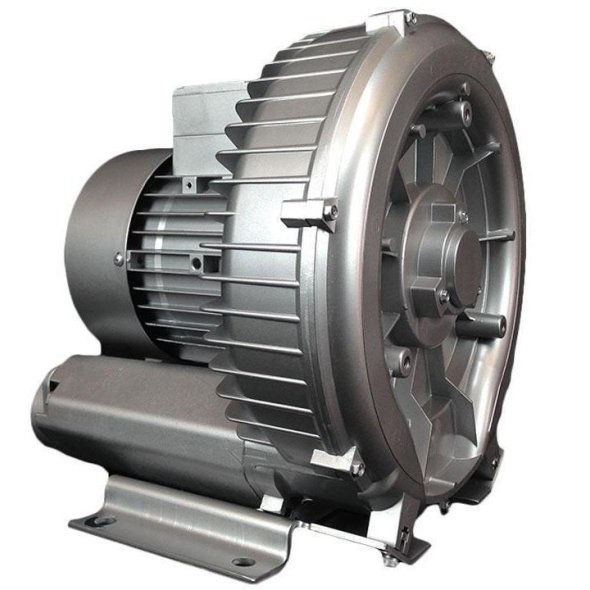

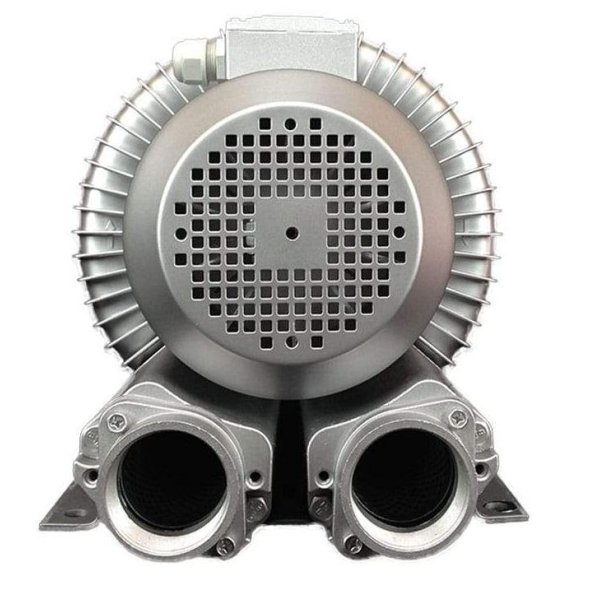

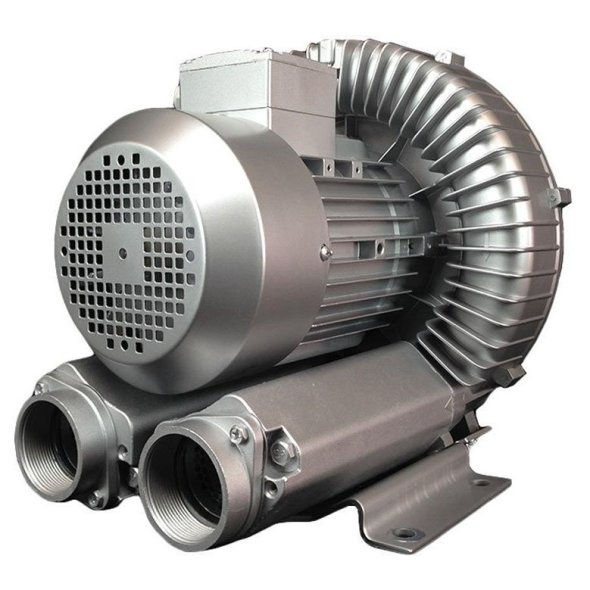

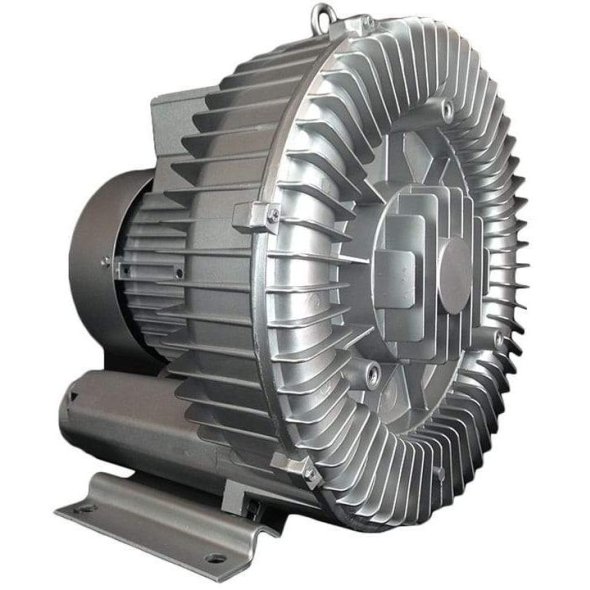

Atlantic Blowers Single Stage Regenerative Blower 2 inch 230 CFM 3 Phase AB-700
NOTE: CORD AND PLUG NOT INCLUDED.
Atlantic Blowers' AB-700 Three Phase/Single Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-700 produces a maximum flow of 230 CFM.
The maximum pressure and vacuum is 134 in H2O and 133 in H2O respectively. The AB-700 has a power output of 6 HP (4.6 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency).
The voltage is 220-275V/380-480V with an FLA rating of 16.2/9.3. Measuring at a distance of 3 ft. the blower will produce a noise level of 72 dbA. The inlet/outlet connection size is 2.00" female NPT.
