Specs for Atlantic Blowers Single Stage Regenerative Blower 2 inch 155 CFM 3 Phase AB-400
Item #: AB-400
2"
155
USA
841459
60 / 50
3.5
2"
Yes
2"
3 Phase
15" x 15" x 15"
68 lbs
1 Stage
240 / 480
1 Year
Texas, USA

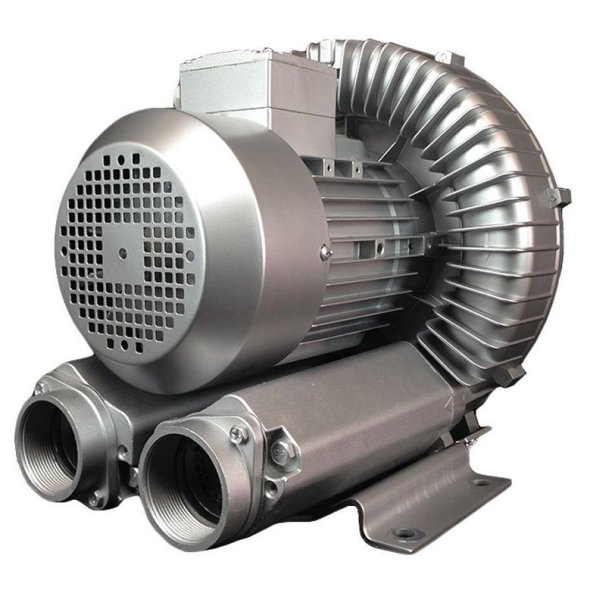

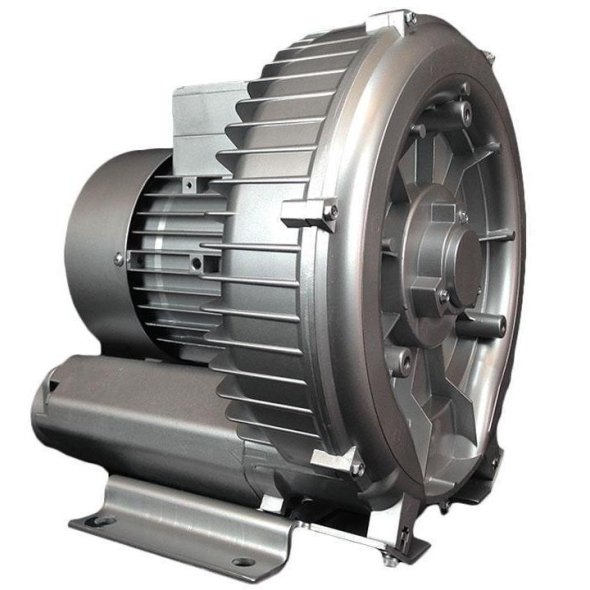

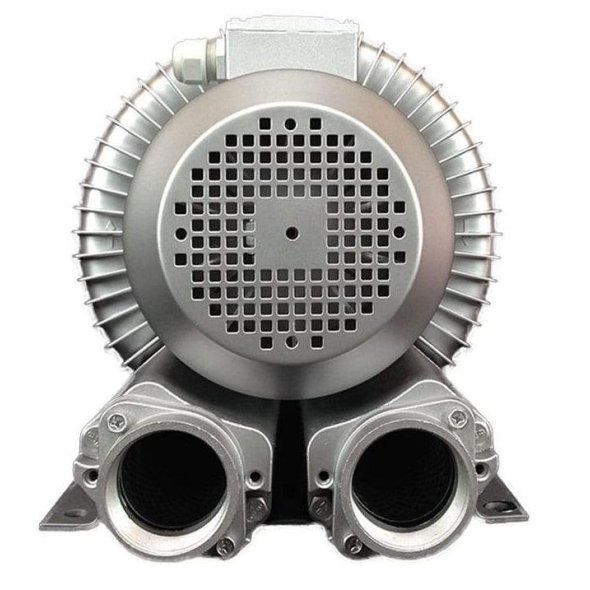

Atlantic Blowers Single Stage Regenerative Blower 2 inch 155 CFM 3 Phase AB-400
NOTE: CORD AND PLUG NOT INCLUDED.
The Atlantic Blowers AB-400 Three Phase/Single Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-400 produces a maximum flow of 155 CFM.
The maximum pressure and vacuum is 118 in H2O and 105 in H2O respectively. The AB-400 has a power output of 3.5 HP (2.55 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency).

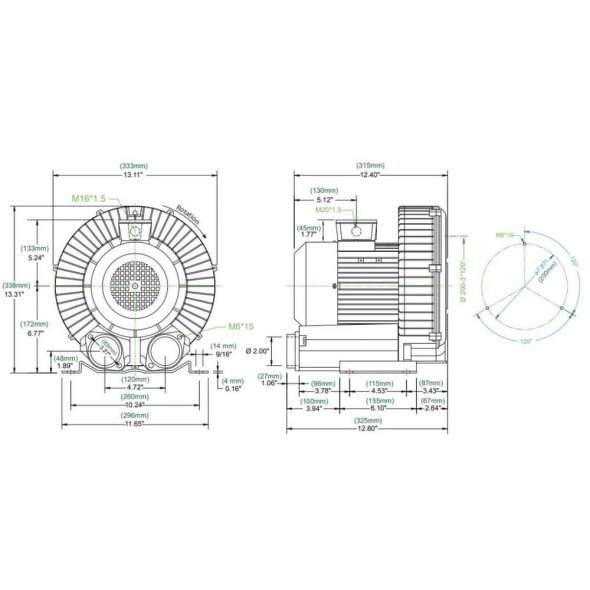

The voltage is 220-275V/380-480V with an FLA rating of 7.0/4.0. Measuring at a distance of 3 ft. the blower will produce a noise level of 70 dbA. The inlet/outlet connection size is 2.00" female NPT.
