Specs for Atlantic Blowers Single Stage Regenerative Blower 1.5 inch 110 CFM 3 Phase AB-200
Item #: AB-200
3.9 / 1.3
110
USA
841459
60 / 50
1.25
1.5"
Yes
1.5"
3 Phase
14" x 14" x 14"
40 lbs
1 Stage
240 / 480
1 Year
Texas, USA

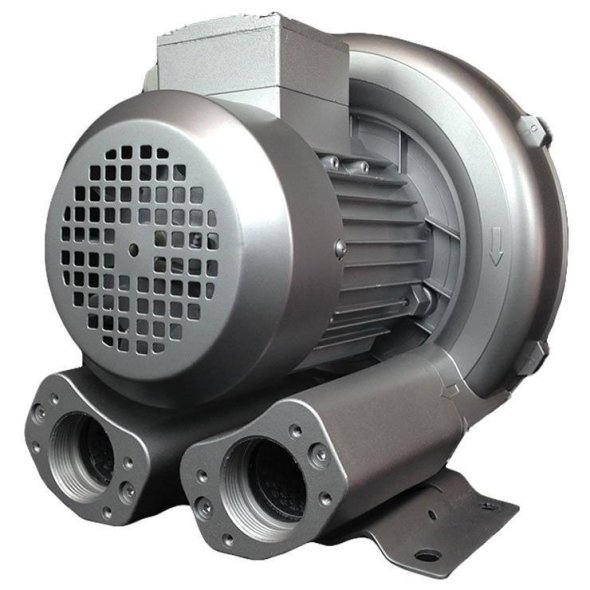

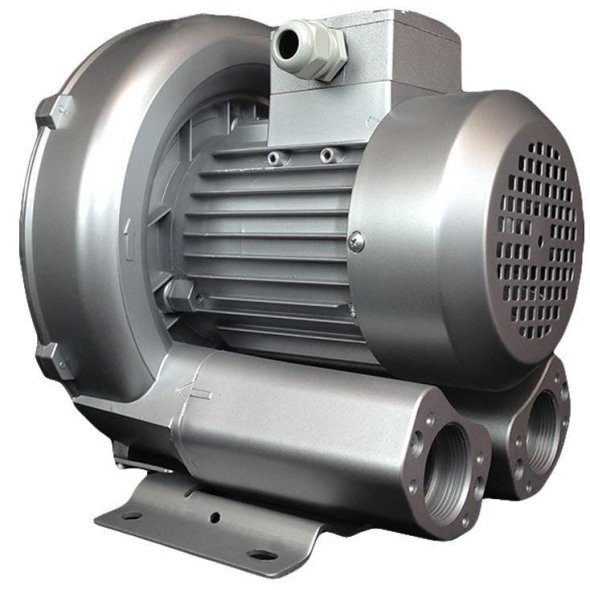

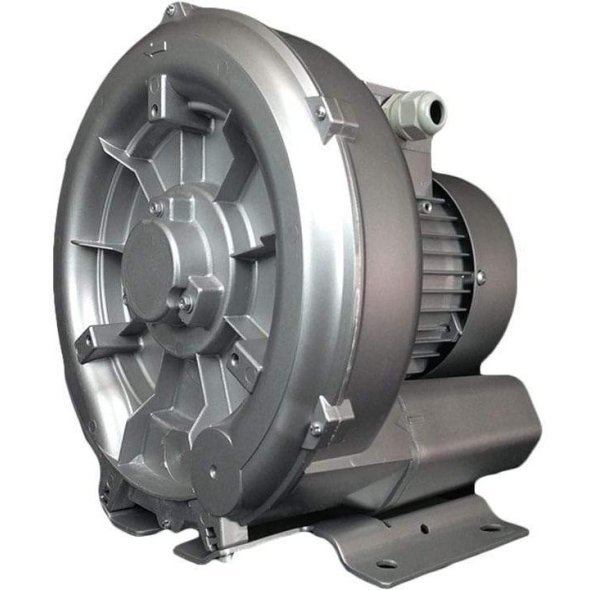

Atlantic Blowers Single Stage Regenerative Blower 1.5 inch 110 CFM 3 Phase AB-200
NOTE: CORD AND PLUG NOT INCLUDED.
The Atlantic Blowers AB-200 Three Phase/Single Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-200 produces a maximum flow of 110 CFM.
The maximum pressure and vacuum is 60 in H2O and 60 in H2O respectively. The AB-200 has a power output of 1.25 HP (0.93 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency).
The voltage is 220-275V/380-480V with an FLA rating of 3.9/2.3. Measuring at a distance of 3 ft. the blower will produce a noise level of 64 dbA. The inlet/outlet connection size is 1.50" female NPT.
