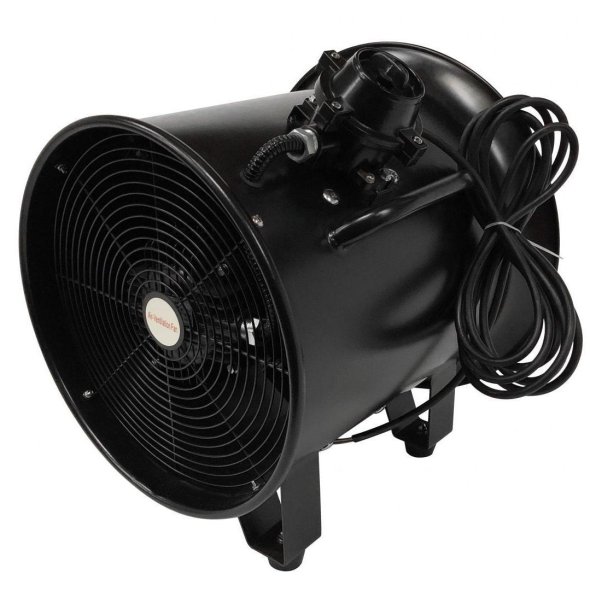

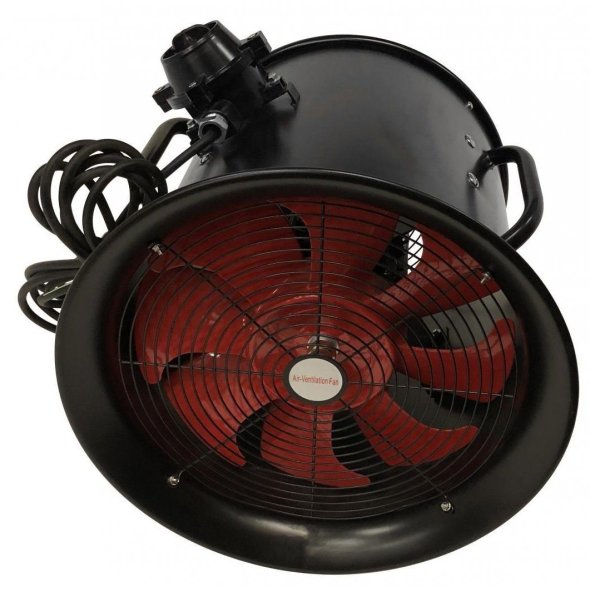

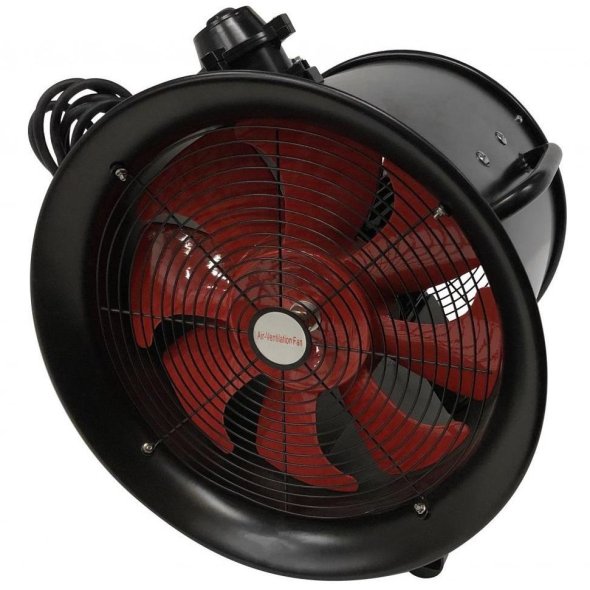

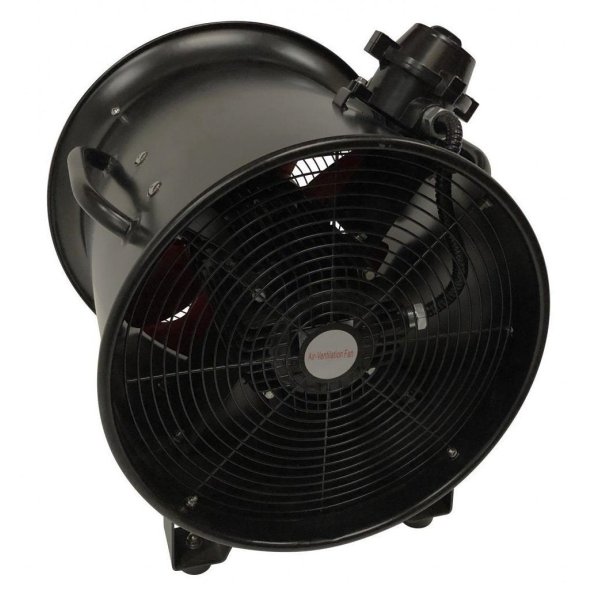

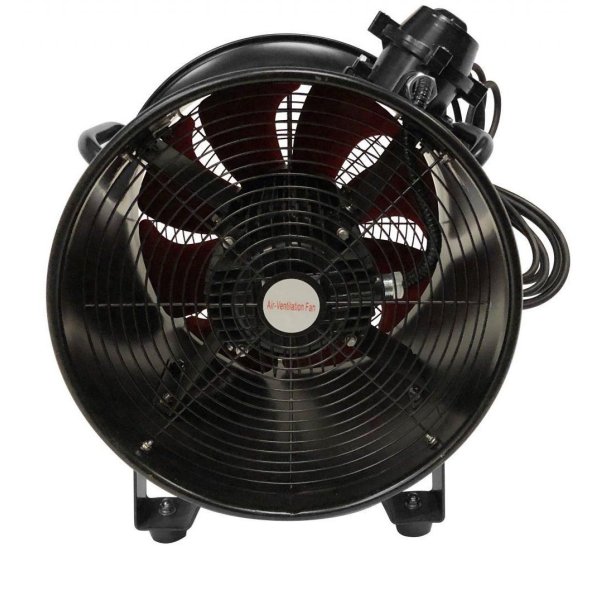

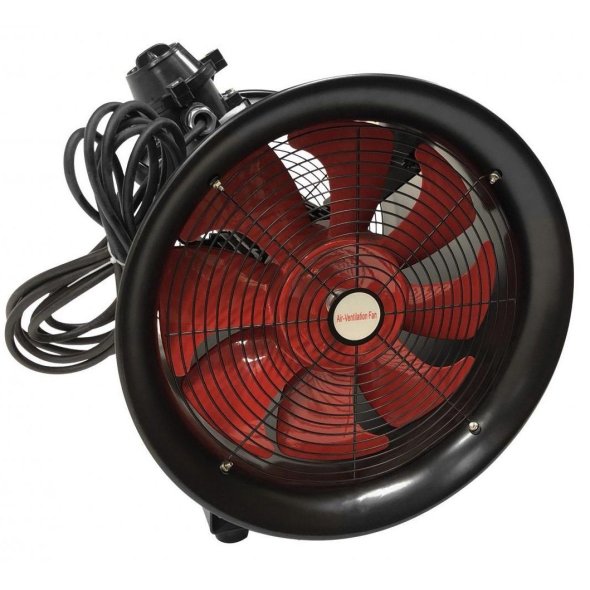

Atlantic Blowers Explosion Proof Utility Fan 16 inch 4238 CFM 230V ABAF-16-220E

Atlantic Blowers Tube Axial Fans are available in several different sizes ranging from 8 inch to 32 inch blade diameter. They are made with the upmost quality and precision, and can be used for many different applications. The impeller is connected directly to the motor shaft, eliminating any need for belts and pulleys.

Explosion Proof Series:
Class 2 Explosion Proof Motor. [Ex d IIB T4 Gb]

Features & Benefits:
Includes cord / no plug
Energy Efficient
Rated for 275 F
Convenient to move with handle or wheels
Low noise (61db - 82db)
Lightweight Die-castAluminum Alloy
Sturdy and powerful with Direct Drive motors
Lobed Axial Blade Shape
Adjustable blade pitch

Atlantic Blower's Tube Axial Fans all have inlet bells and lobed blades as standard equipment.

The lobed blade shape creates a more laminar flow. This allows the air to flow smoothly and eliminates pulsing. The outer portion of the blade does most of the work, especially with the large surface area rotating the fastest, and moving the most air. This makes for more direct air flow at a high efficiencyrate, saving you money, without sacrificing performance.

Atlantic Blowers' ABAF-16-220E Explosion Proof Single Phase Axial Fan can be used for various low pressure, high airflow applications.
