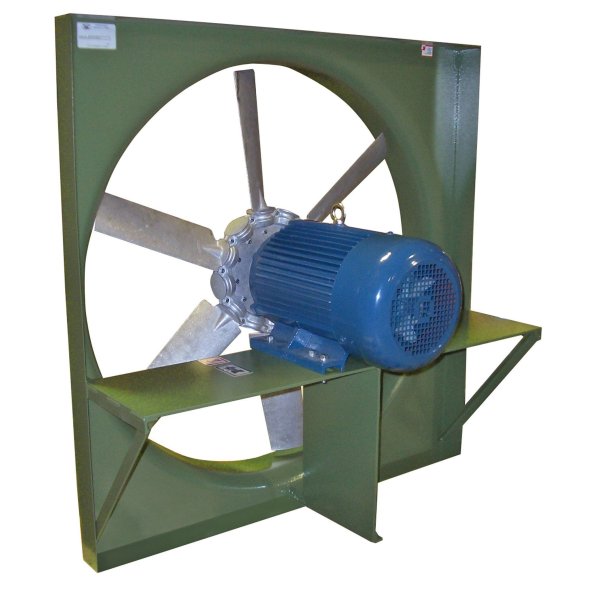

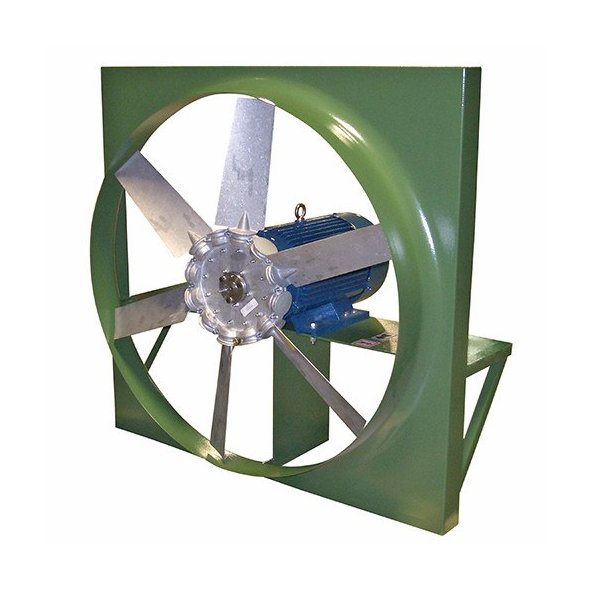

ADD Panel Mount Exhaust Fan 36 inch 21500 CFM Direct Drive 3 Phase ADD36T30750BM

NOTE: FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.

The ADD wall exhaust fan is designed for general ventilation in heavy duty commercial and industrial applications including factories, warehouses, gymnasiums, underground parking garages, etc. These fans are typically used for high volume, high static pressure applications.

The series ADD is designed and constructed for efficient and economical operations and is direct drive, there fore requiring little or no maintenance. Heavy duty airfoil cast aluminum blades are standard to ADD series fans providing maximum performance at low sound levels. This fan can be used in exhaust or supply applications.

FEATURES
Heavy gauge steel fan panel with deep spun and flared venturi for maximum efficiency
Heavy gauge welded steel motor supports
Cast aluminum airfoil blades
TEFC motors are standard

• Spec Sheet
• User Manual

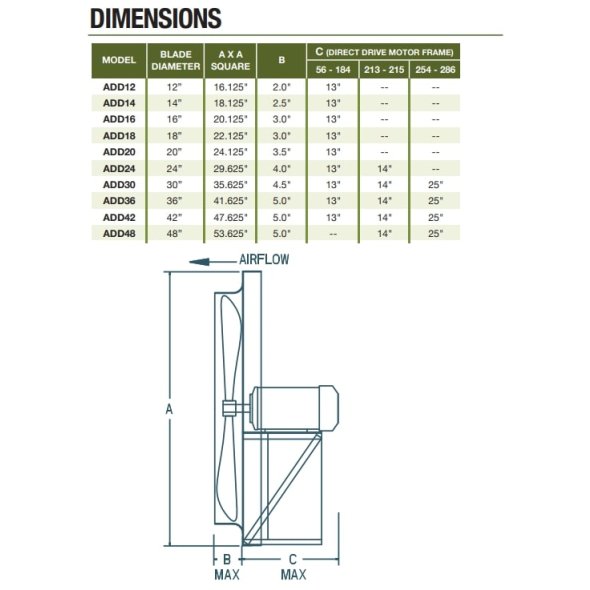

• Dimensions
