Specs for ADD Panel Mount Exhaust Fan 30 inch 12780 CFM Direct Drive 3 Phase ADD30T30200CM
Item #: ADD30T30200CM
30"
Cast Aluminum
12780
Canada
Direct
841459
60
2
Yes
3 Phase
36" x 36" x 18"
149 lbs
12780
1 Speed
240 / 480
1 Year
New York, USA
Yes

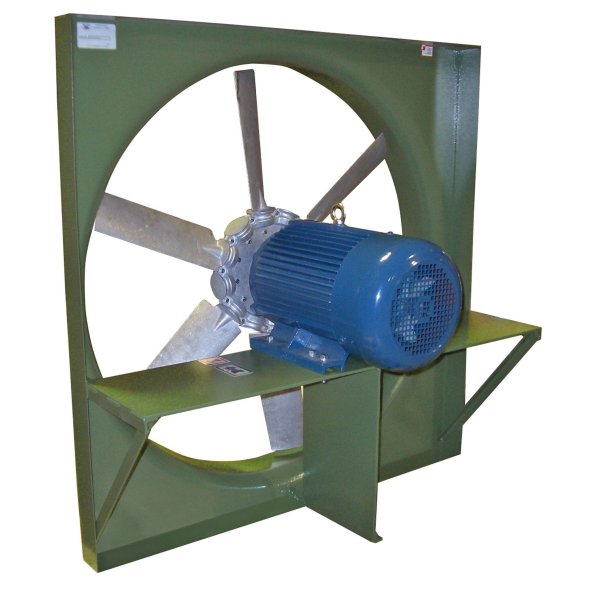

ADD Panel Mount Exhaust Fan 30 inch 12780 CFM Direct Drive 3 Phase ADD30T30200CM
NOTE: FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
The ADD wall exhaust fan is designed for general ventilation in heavy duty commercial and industrial applications including factories, warehouses, gymnasiums, underground parking garages, etc. These fans are typically used for high volume, high static pressure applications.
The series ADD is designed and constructed for efficient and economical operations and is direct drive, there fore requiring little or no maintenance. Heavy duty airfoil cast aluminum blades are standard to ADD series fans providing maximum performance at low sound levels. This fan can be used in exhaust or supply applications.
FEATURES Heavy gauge steel fan panel with deep spun and flared venturi for maximum efficiency Heavy gauge welded steel motor supports Cast aluminum airfoil blades TEFC motors are standard
