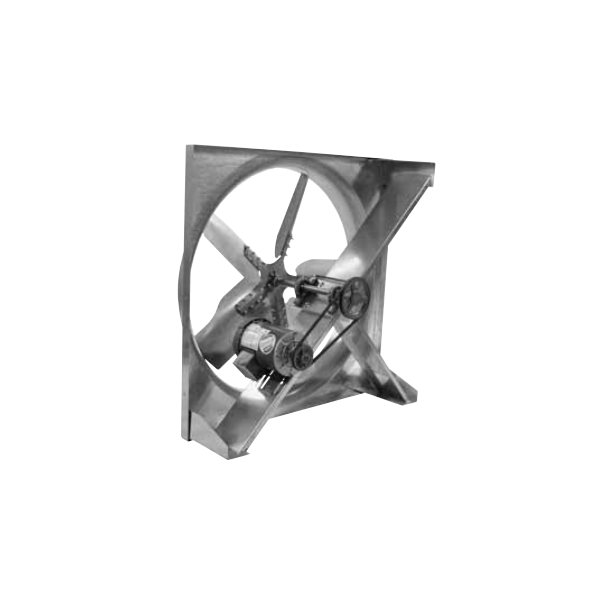

LCS Sidewall Supply Propeller Fan 20 inch 4921 CFM Belt Drive 1 Phase LCS20QH1S

LCE (exhaust) and LCS (supply) high capacity belt driven propeller fans rated from 3,000 to 40,000 CFM, with static pressure capability up to 5/8" w.g. Their primary application is the exhaust or supply of large volumes of air at relatively low static pressures from commercial, light industrial and agricultural buildings such as manufacturing and assembly plants, warehouses, parking garages, gymnasiums, equipment rooms, distribution centers, poultry houses, and greenhouses.

LC's can be suspended from the ceiling to direct large volumes of air downward toward work centers, improving employee comfort and productivity.

FEATURES
Heavy-gauge galvanized steel panel
Die formed galvanized steel blades
Drives are sized for a minimum 150% of drive horsepower
AMCA Air and Sound Licensed
UL Listed
cULus 705 Listed
Rated for 140 degrees F
