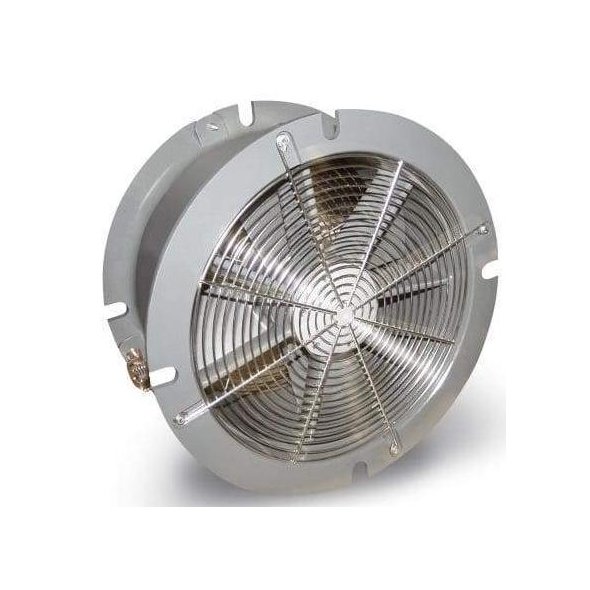

Hazardous Location Pneumatic Air Driven High Volume Axial Jet Ventilator 24 inch 16900 CFM 9518-24

NOTE: HAZARDOUS LOCATION FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.

This heavy duty aluminum fan can be used as a blower or exhaust by simply reverse mounting. Compressed air is pushed through a nozzle at the end of each blade creating the fan to propel at speeds up to 16,900 CFM at 100 psig quickly and efficiently. This heavy duty aluminum fans can be used as a blower or exhaust by simply reverse mounting. Added features include 3/4€? side mount inlet connector, heavy duty ball bearings permanently lubricated and sealed for the life of the fan and a spark resistant unit. Easy to transport with recessed handles or it can be rolled. 11 3/4" h x 32 3/4" diameter.

*Note: Maximum operating air pressure is 100 PSIG. Temp. of compressed air should not exceed 200° F. Units are NOT designed to run on steam!

FEATURES:

Heavy duty aluminum fan and fan housing

Spark - resistant

Heavy duty ball bearings (permanently lubricated and sealed for the life of the product)

Stainless steel fan shaft eliminates internal rust

3/4" side mount inlet connector

OSHA standard safety screens

SHIPPING DIMENSIONS: 34" L x 34" W x 13" H

Weight: 165 lbs.
