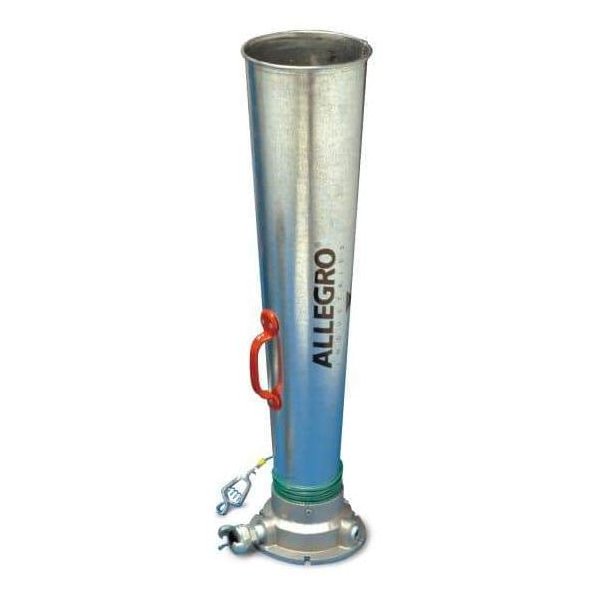

Hazardous Location Pneumatic Air Driven Venturi Blower 8220 CFM 9518-10

NOTE: HAZARDOUS LOCATION FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.

The Venturi Blowers are a perfect solution to moving air in refineries, utility and power plants, shipyards, paper and pulp plants, the marine and steel industry and manhole operations.

Use the Venturi Blowers to remove poisonous, explosive or hazardous fumes from confined spaces such as process towers, tanks, and large pipes. You can cool workers in elevated temperature conditions, or cool heavy equipment that may be in danger of overheating with a blast of directed air.

Our line of high-performance, lightweight Venturi Blowers help to create a safe, healthy working environment leading to greater efficiency and productivity. Welding fumes, hot air, gases and smoke can all be removed quickly and easily. Venturi Blowers can also be used to move fresh air into a manhole.

OPERATION
Compressed air or saturated steam is the power source for the Venturi Blower line. Small volumes of high velocity air (from the compressed air source) run through the casing and out the nozzle jets, creating a venturi action or pulling action that creates large volumes of air through the venturi and out the air diffuser.

A 1" to 1 1/2" hose with "crows foot" connection is recommended from your air supply source to the side inlet connection. The compressor size required can be determined by checking the chart on air consumed at various inlet pressures. Operate this Venturi Blower on air or steam lines limited to 140 psi.

FEATURES
Lightweight construction
Convenient carry handles for one-person portability to any location
No guards required
Multiple inlet ports
Sturdy steel galvanized steel diffuser
ll models include a crow's feet inlet connection
Static ground is attached to the base of all blowers
Single piece cast aluminum inlet housing
