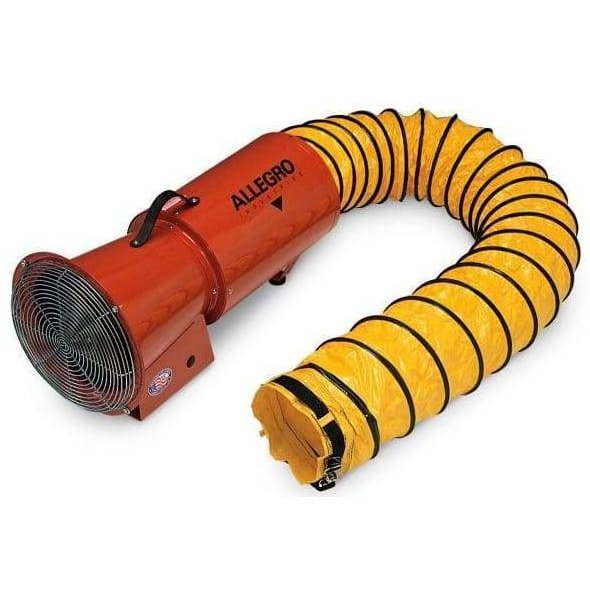

Confined Space Ventilator Fan 8 inch w/ 25' Duct 778 CFM 9534-25

Confined Space Ventilator Fan 8 inch w/ 25' Duct 778 CFM 9534-25

Lightweight and compact design allows for easy portability without sacrificing performance. Certified to CSA Standard C22.2 No. 113.

FEATURES:
Complete unit epoxy powder coated in safety orange
15 gauge cold rolled steel housing with welded motor mount construction
20 gauge steel canister
Available with 15 ft or 25 ft ducting and canister
Enclosed wide base for greater stability
Steel/chrome plated grill
Carry handle made of 3-ply rubber belting
Equipped with four rubber feet FAN:
Glass reinforced Polypropylene (PPG) six blade fan, with aluminum hub MOTOR:
UL Recognized, CSA Certified
6 ft (1.82m) SJOOW 16/3 AWG, neoprene, 300V medium duty
NEMA 5-15 Plug 125V AC DUCTING:
Retractable, non-collapsible design, temperature resistant up to 180°F (82.2°C)
Single-ply 25', PVC coated, vinyl and polyester materials
Class 1 hard drawn spring steel wire helix that meets ASTM specs ** FLOW RATE (CFM calculated using 15' (4.57m) of 8" (20.3cm) ducting)
DIMENSIONS: 10" h x 11" w x 28" l
