Specs for Confined Space 8" Blower System w/ MVP 9520-14M
Item #: 9520-14M
22
8"
1275
USA
15
841459
60
0.33
Yes
17" x 17" x 32"
35 lbs
582 ft²
120
South Carolina, USA
Confined Space 8" Blower System w/ MVP 9520-14M

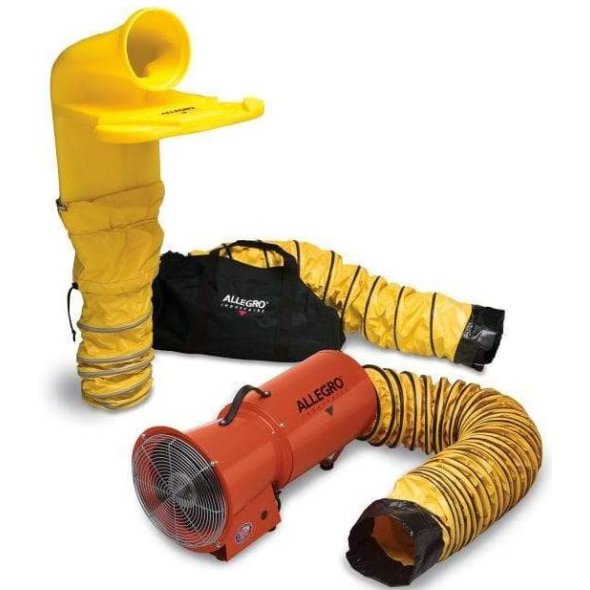

The easy to use complete ventilation system including all the most-asked-for equipment you need for your confined space site. The system includes a ac axial blower, six inch 6' and 15'of ducting with a storage bag, and a manhole ventilation pass-thru (MVP). The axial blower systems offer lightweight portability with the highest output available from axial-style blowers.
FEATURES:
Epoxy powder coated in "safety orange"
Flange on intake side for optional inlet adapter
18 gauge cold rolled steel housing
14 gauge steel enclosed panel to protect electrical components
Welded motor mount construction
Steel/chrome plated grill
Equipped with four rubber feet
Handle made of 3 ply rubber belting and equipped with 4 feet
Moving fan mounted 1 5/8" from grill for safety, 5/16" grill gap
Glass reinforced polypropylene 6 blade fan with aluminum hub
DUCTING:
Retractable, non-collapsible design, single ply
PVC coated vinyl and polyester materials, temperature resistant up to 180 degrees
Yellow color with black weather strip and integrated nylon strap
Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs
*
CFM calculated using 15' (4.57m) of 8" (20.3cm) ducting
