Specs for Manhole Ventilation Passthru 8 inch 9510-55
Item #: 9510-55
8"
USA
841459
60
Yes
15" x 12" x 16"
10 lbs
South Carolina, USA

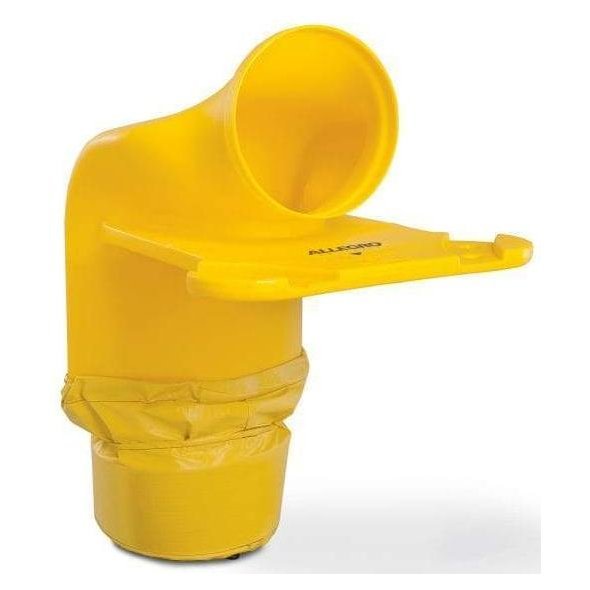

Manhole Ventilation Passthru 8 inch 9510-55
The Manhole Ventilation Pass-thru (MVP) is designed to maintain and re-direct air flow with minimal restriction into manholes, sewers and tanks. The MVP is the first manhole system that combines the low profile manhole air vent, 90° elbow and built in mounting all in one unit. This unit comes with a collapsible duct for easy entry, stored in a small storage bag that can be dropped down into the manhole with a quick release of the drawstring. The collapsible duct springs back into shape once worker is down into the manhole. The ducting is vinyl and polyester with PVC coating and heat resistant up to 180°F. The manhole cover fits into a flat channel corner for stabilization. Compact, lightweight and made for Linear Low Density Polyethylene, the MVP is not statically conductive. This unit is easy to store and ships in one small carton. Recyclable.
FEATURES: Low profile elbow fits underneath the lower cross bar of the guardrail Manhole cover fits into flat channeled corners for stabilization Small storage bag holds ducting Quick release draw string to drop ducting into manhole Collapsible duct for easy entry springs back into shape once worker is down into the manhole Combines three components, the low profile manhole air vent, 90° elbow and built in mounting all into one easy assembly Reducing overall size, storage and shipping cost Weight 11 lbs
DUCTING: 15' Vinyl and polyester with PVC coating Compressible inner support coils Heat resistance up to 180°F
DIMENSIONS: 32" (Duct stored) / 62" (Duct in use) L x 20" W x 23" H
