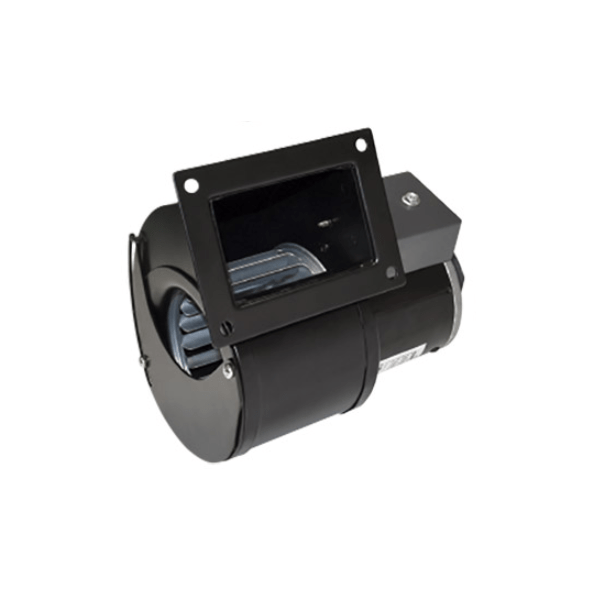

PSC Square Mounting Inflation Blower 148 CFM VBM148A-P

Energy efficient PSC Inflation Blowers from J&D Manufacturing are designed to inflate double poly greenhouses for greater insulation capabilities. All models have adjustable damper doors to regulate air flow as the poly expands. J&D Inflation Blowers have a heavy gauge steel housing and forward curve metal wheel that is balanced for smooth operation. Oversized mounting holes on the discharge flange fit most industry standard brackets.

FEATURES
Permanent split capacitor, energy efficient, Class B motor with sealed ball bearings and automatic thermal overload protection
PSC motor draws 50% less power and 70% less amps than similar shaded-pole blowers
Heavy gauge steel housing with powder coated black finish
Adjustable air flow damper
Forward curve metal blower wheel
Dynamically balanced to reduce noise and vibration
Fully enclosed wires and connections
Junction box with cord knock out for easy wiring
Brass set screw for ground wire
Fits most industry standard mounts
Available with 6' cord and 3-prong plug pre-wired for 120 Volts
Ships fully assembled and individually packaged
