Specs for Atlantic Blowers Two Stage Regenerative Blower 4 inch 812 CFM 3 Phase AB-1902
Item #: AB-1902
92 / 53.2
4"
812
USA
841459
60 / 50
40
4"
Yes
4"
3 Phase
28" x 28" x 28"
443 lbs
2 Stage
240 / 480
1 Year
Texas, USA

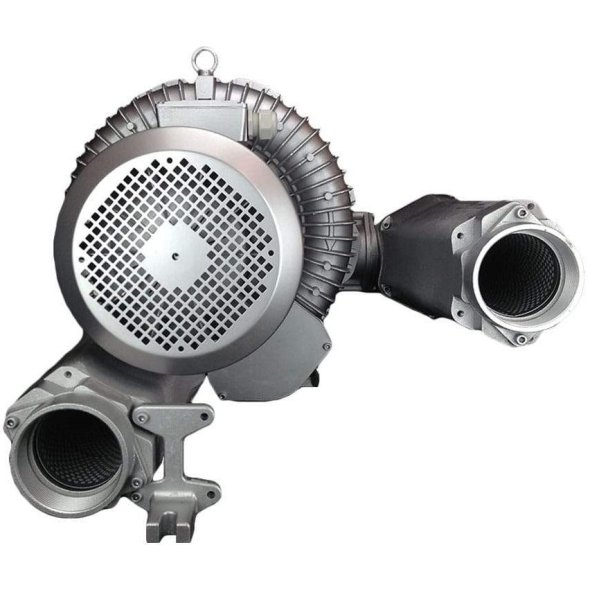

Atlantic Blowers Two Stage Regenerative Blower 4 inch 812 CFM 3 Phase AB-1902
NOTE: CORD AND PLUG NOT INCLUDED.
The Atlantic Blowers AB-1902 Three Phase/Double Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-1902 produces a maximum flow of 812 CFM.
The maximum pressure and vacuum is 185 in H2O and 177 in H2O respectively. The AB-1902 has a power output of 40 HP (29 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency).
The voltage is 220-275V/380-480V with an FLA rating of 92.0/53.2. Measuring at a distance of 3 ft. the blower will produce a noise level of 84 dbA. The inlet/outlet connection size is 4.00" female NPT.
