Specs for Atlantic Blowers Two Stage Regenerative Blower 1.5 inch 61 CFM 3 Phase AB-302
Item #: AB-302
61
USA
841459
60 / 50
2
1.5"
Yes
1.5"
3 Phase
15" x 15" x 15"
46 lbs
2 Stage
240 / 480
1 Year
Texas, USA

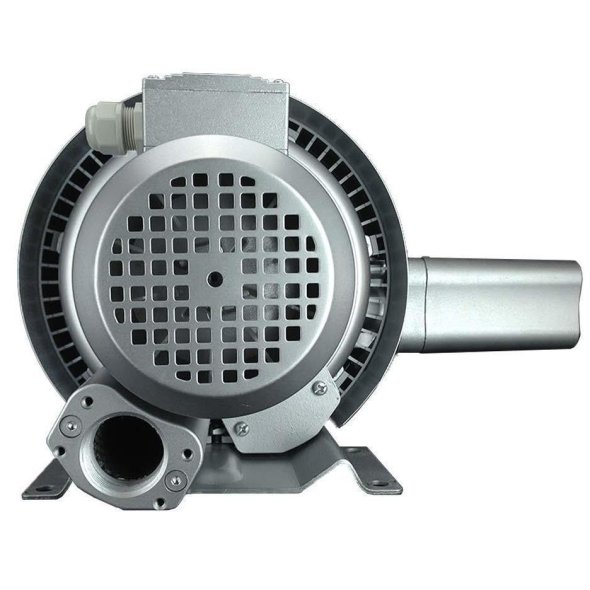

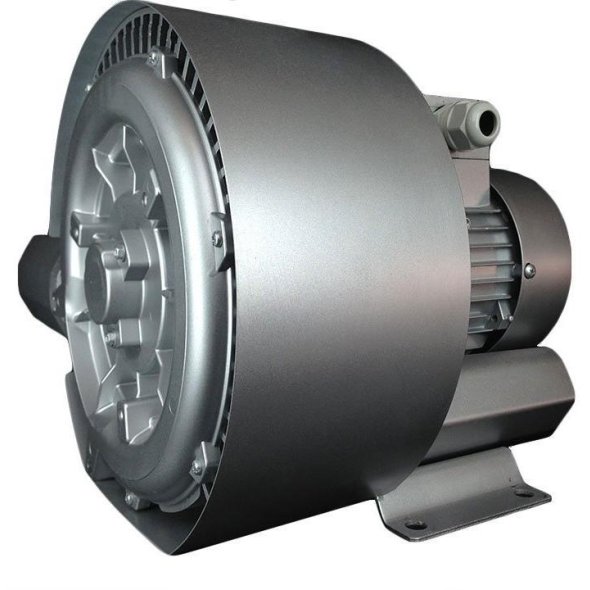

Atlantic Blowers Two Stage Regenerative Blower 1.5 inch 61 CFM 3 Phase AB-302
NOTE: CORD AND PLUG NOT INCLUDED.
The Atlantic Blowers AB-302 Three Phase/Double Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-302 produces a maximum flow of 61 CFM.
The maximum pressure and vacuum is 118 in H2O and 87 in H2O respectively. The AB-302 has a power output of 2 HP (1.5 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency).
The voltage is 220-275V/380-480V with an FLA rating of 7.0/4.0. Measuring at a distance of 3 ft. the blower will produce a noise level of 68 dbA. The inlet/outlet connection size is 1.50" female NPT.
