Specs for Atlantic Blowers Two Stage Regenerative Blower 1.5 inch 113 CFM 1 Phase AB-402/1
Item #: AB-402-1
23 / 11.4
14"
113
USA
841459
60
1.35
Yes
3 Phase
25" x 168" x 168"
118 lbs
Variable Speed
15386 ft²
480
Motor: 5 Year Limited </br> Electronic Controls: 1 Year Limited </br>Airfoils and Hub: Lifetime
Texas, USA

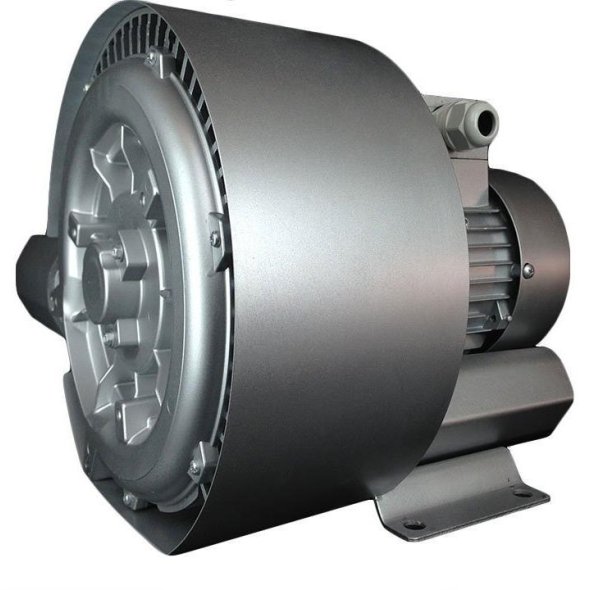

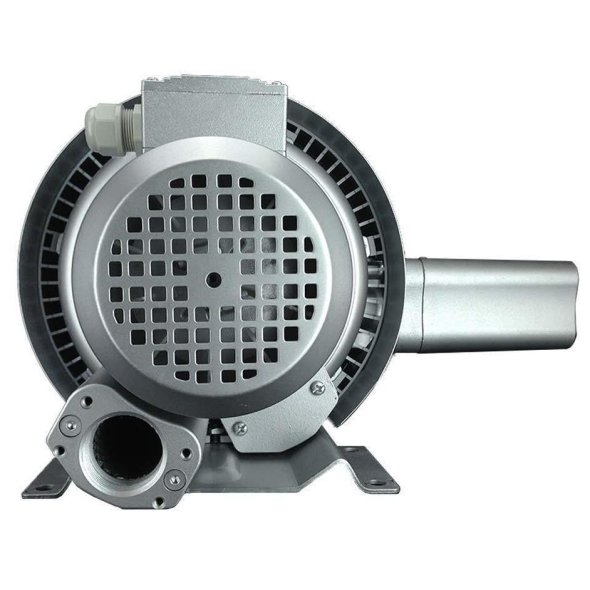

Atlantic Blowers Two Stage Regenerative Blower 1.5 inch 113 CFM 1 Phase AB-402/1
Atlantic Blowers' AB-402/1 Single Phase/Double Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-402/1 produces a maximum flow of 113 CFM.
The maximum pressure and vacuum is 138 in H2O and 110 in H2O respectively. The AB-402/1 has a power output of 3 HP (2.2 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency).
The voltage is 110-120V/220-240V with an FLA rating of 23.0/11.4. Measuring at a distance of 3 ft. the blower will produce a noise level of 69 dBA. The inlet/outlet connection size is 1.50" female NPT.
