Specs for Atlantic Blowers Single Stage Regenerative Blower 4 inch 791 CFM 3 Phase AB-1300
Item #: AB-1300
76 / 44
4"
791
US
841459
60 / 50
30
4"
Yes
4"
3 Phase
30" x 30" x 30"
351 lbs
1 Stage
240 / 480
1 Year
Texas, USA

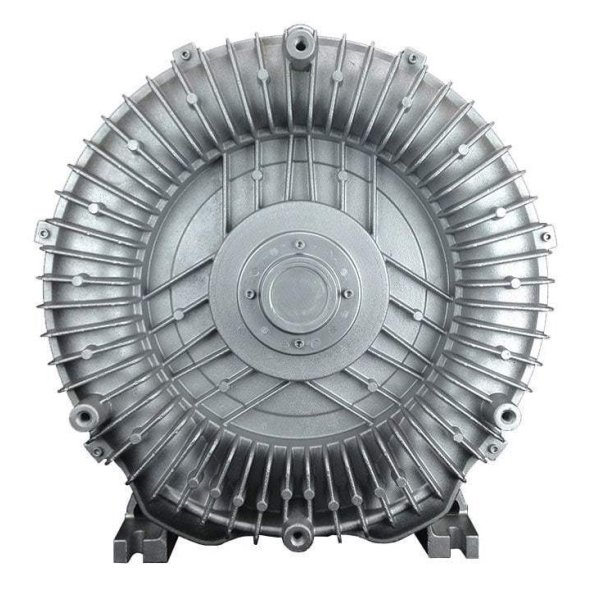

Atlantic Blowers Single Stage Regenerative Blower 4 inch 791 CFM 3 Phase AB-1300
NOTE: CORD AND PLUG NOT INCLUDED.
The Atlantic Blowers AB-1300 Three Phase/Single Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-1300 produces a maximum flow of 791 CFM.
The maximum pressure and vacuum is 169 in H2O and 150 in H2O respectively. The AB-1300 has a power output of 30 HP (22.7 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency).
The voltage is 220-275V/380-480V with an FLA rating of 76.0/44.0. Measuring at a distance of 3 ft. the blower will produce a noise level of 81 dbA. The inlet/outlet connection size is 4.00" female NPT.
