Specs for Atlantic Blowers Single Stage Regenerative Blower 2.5 inch 399 CFM 3 Phase AB-900
Item #: AB-900
29 / 14.3
2.5"
399
USA
841459
60 / 50
11.5
2.5"
Yes
2.5"
3 Phase
27" x 27" x 27"
194 lbs
1 Stage
240 / 480
1 Year
Texas, USA

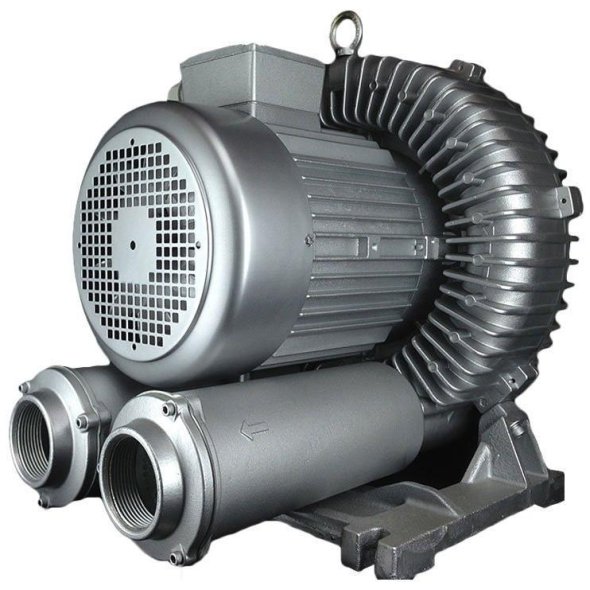

Atlantic Blowers Single Stage Regenerative Blower 2.5 inch 399 CFM 3 Phase AB-900
NOTE: CORD AND PLUG NOT INCLUDED.
The Atlantic Blowers AB-900 Three Phase/Single Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-900 produces a maximum flow of 399 CFM.
The maximum pressure and vacuum is 177 in H2O and 141 in H2O respectively. The AB-900 has a power output of 11.5 HP (8.6 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency).
The voltage is 220-275V/380-480V with an FLA rating of 29.0/14.3. Measuring at a distance of 3 ft. the blower will produce a noise level of 80 dbA. The inlet/outlet connection size is 2.50" female NPT.
