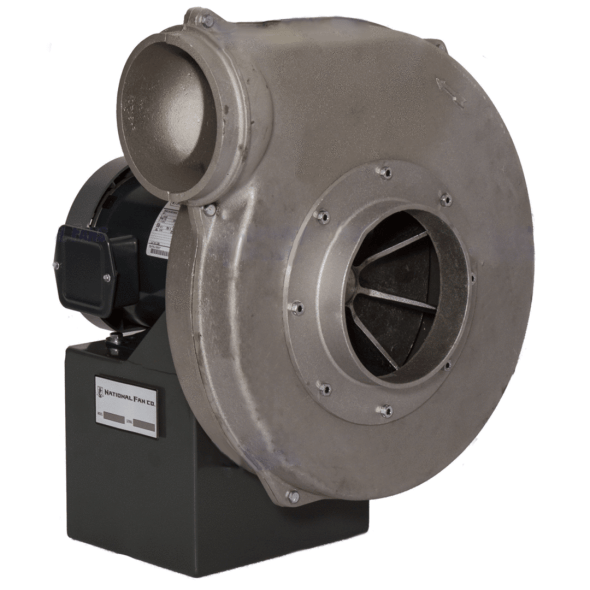

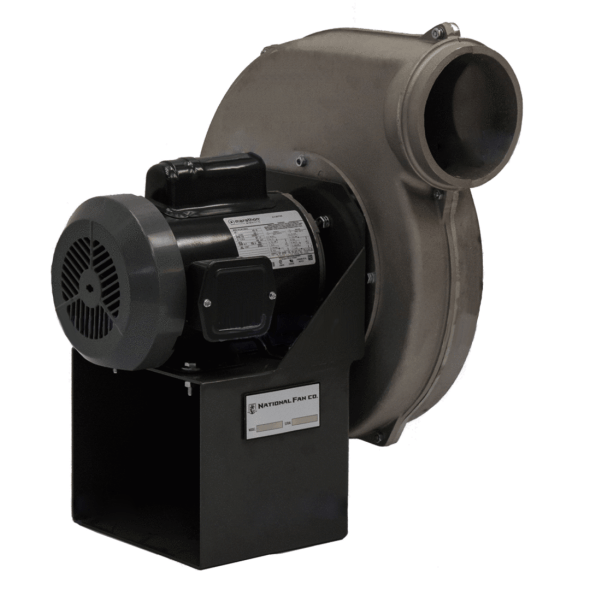

TALON - Aluminum Backward Curve Pressure Blower 8 inch Inlet / Outlet 2360 CFM at 1" SP 3 Phase NHADP15-J-3-T

Designed for use in situations requiring moderate CFM movement against relatively high static pressure systems. Excellent for fume exhaust, mounted on dust collectors, non-abrasive material conveying, vehicle exhaust removal in garages and fire departments, air source for air knives, and combustion air for gas burners.

FEATURES
Cast aluminum housing and wheels are naturally non-sparking and meet AMCA Type B spark resistant construction
Round outlets and inlets facilitate connection to standard pipe and duct diameters with slip fit connections or flange to flange
Six housing sizes and multiple wheel diameters provide a wide range of available performance ratings
Suitable for use in air streams to a maximum of 150°F

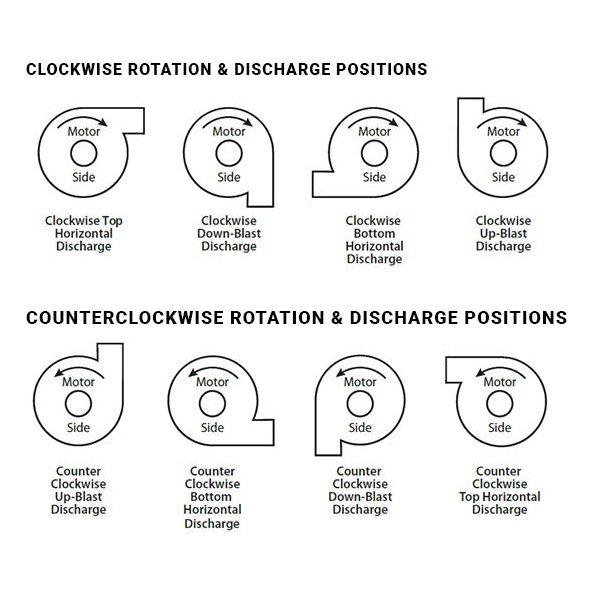

Most sizes available in clockwise or counter-clockwise rotation with eight different discharge positions
Standard motor is industrial duty TEFC enclosure
All models run at 3450 RPM

• User Manual
• Spec Sheet
