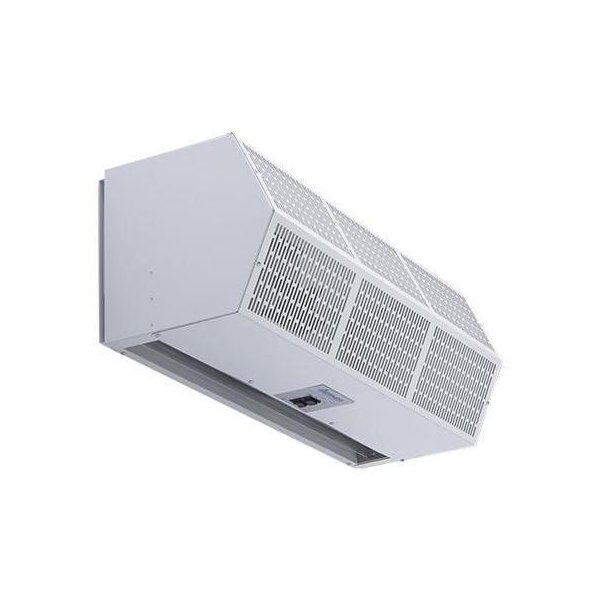

Berner (HEATED) Commercial High Performance 10 Air Curtain 42 inch 1763 CFM 3 Phase CHD10-1042E

NOTE:THIS FAN IS NON-RETURNABLE AND CANNOT BE CANCELLED.

For mounting heights to 10' (environmental separation) and 8' (insect control)

Designed to meet the functional needs of the application and to integrate into the space
AMCA certified ambient & electric heated models - meetsIECC building codewhich allows AMCA certified air curtains as an alternative to vestibules
Simple to install, operate, and maintain
Made in U.S.A.

IDEAL APPLICATIONS:
Service / Employee Doors
Main Entrances
Conveyors
Shipping and Receiving

Simple design, high performance, white powder-coated exterior.
Single lengths from 3' to 10'
No Assembly Required
Simple to install, operate, and maintain
Made in U.S.A.
Wall plate included
5/6" threaded inserts for top mounting
Bottom access panel for easy access to internal components
2 Year Warranty

FEATURES: Patented venturi open helical element with point suspension
14" high x 15" deep
1/2 HP - 3 speed motor(s)
Factory installed fan speed/heat switch
White or Black aluminum exterior cover
Wall and top mounting
Thermal overload protection
Galvanized steel frame

**NOTE: Operation at 50 Hz will generate approximately a 17% reduction in air performance.

Click >> HERE << for additional product information.

Sound level measured 10' (3m) from the unit in free field:
1 motor : Low/Medium/High Speed: 64/65/66 dBA
2 motors 60": Low/Medium/High Speed: 66/67/68 dBA
2 motors : Low/Medium/High Speed: 67/68/69 dBA
3 motors : Low/Medium/High Speed: 67/68/69 dBA
