Specs for SD Explosion Proof Wall Mount Exhaust Fan w/ Shutters 24 inch 5500 CFM SD24-XPF
Item #: SD24-XPF
6.6 / 3.3
24"
Heavy Gauge Aluminum
5500
US
Direct
841459
60
0.33
Yes
I, II
1
C, D, F, G
Explosion Proof
1 Phase
30" x 30" x 27"
69 lbs
5500
1 Speed
120 / 240
1 Year
New York, USA

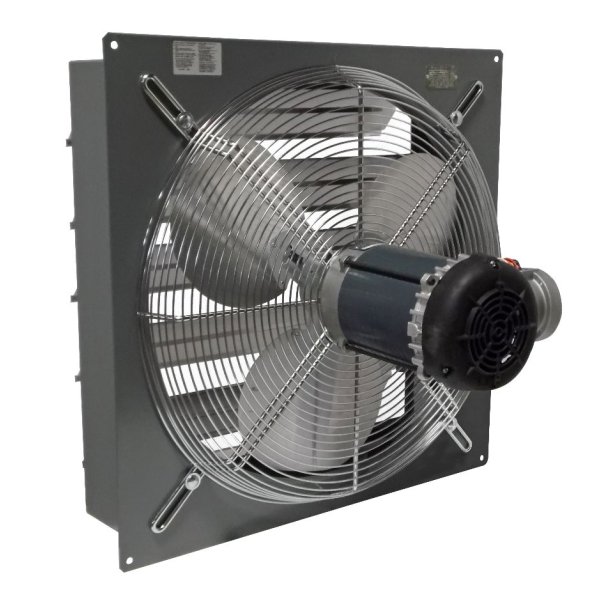

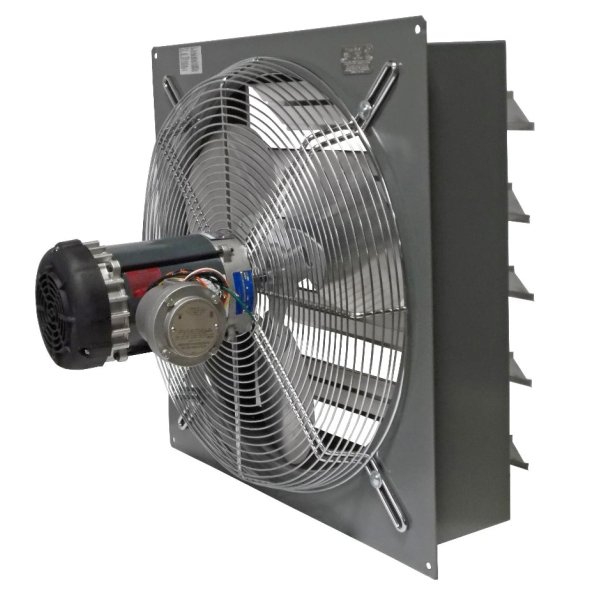

SD Explosion Proof Wall Mount Exhaust Fan w/ Shutters 24 inch 5500 CFM SD24-XPF
NOTE:HAZARDOUS LOCATION FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
Canarm Explosion Proof Fans follow a tradition of quality in design, materials, and construction. Using our quality "Standard Fan" housing and motor mount as the basis for design, we have developed an efficient, economically priced Explosion Proof Fan. All Explosion Proof Fans have a single speed, dual voltage explosion proof motor that meets and conforms to the following standards:
MOTOR CLASSIFICATION Class I - Group C & D Class II - Group F & G

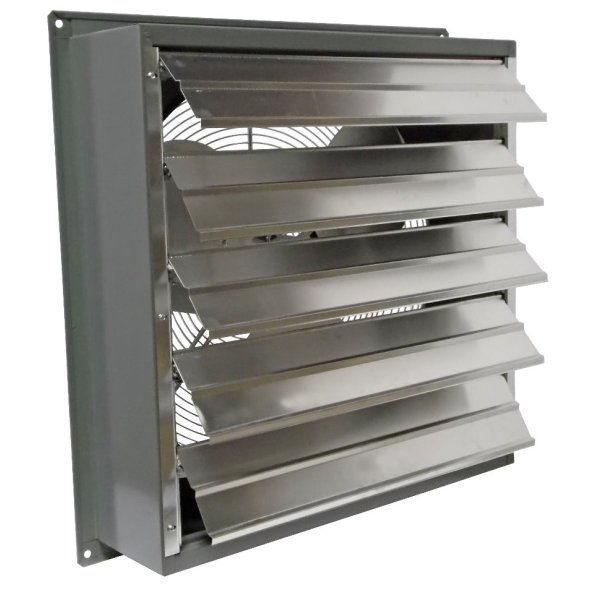

FEATURES SD24 - 5 Louvers Totally enclosed, ball bearing motor with thermal overload protection The fan blades are well-balanced, heavy gauge aluminum The rugged steel welded box housing has a durable powder coated finish Aluminum louver shutters are supported by long life nylon bushings Heavy wire chrome plated OSHA guards on intake side of fan All fans are shipped completely assembled
