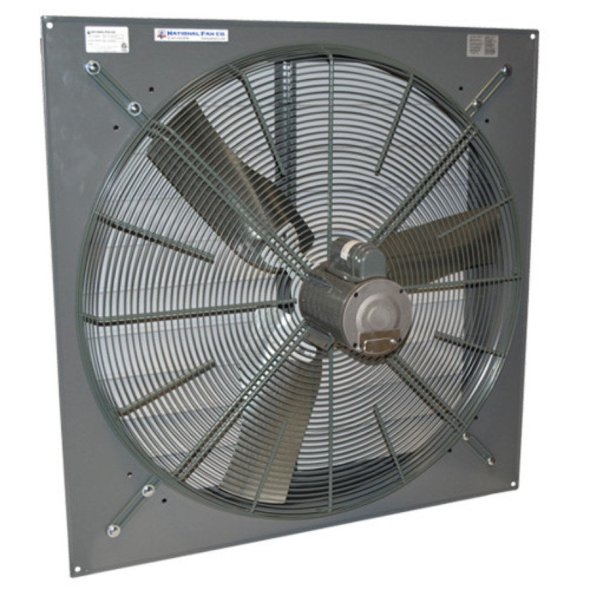

RAVEN - Exhaust Fan w/ Shutters 36 inch 10200 CFM 1 Speed SF36G1D

Standard Wall Fans follow a tradition of quality in design, materials and construction. All our Standard Wall Fans are developed to be efficient and economically priced.

FEATURES
All fans use a totally enclosed, ball bearing motor with thermal overload protection.
The motor mount is manufactured with heavy welded rods and has a powder coated finish.
The fan blades are well-balanced, heavy gauge aluminum.
The rugged steel welded box housing has durable powder coated finish.
PVC louvers shutters are supported by long life nylon bushings.
All fans are shipped completely assembled.
1 Year Limited Warranty

*NOTE: The motor Full Load Amperage ratings are meant to be used as a General guideline only. The ratings are from the primary motor supplier. These amperage ratings may vary slightly if a different motor supplier is used. It is also possible that a motor manufacture may modify / improve / update a motor in which the amperage rating will change slightly.

DIMENSIONS:
A = 41 1/4"
B = 16"
C = 6"
D (Center to Center) = 40"
E = 38 3/4"
N = 20
